This week has been dedicated to setting up for the CQ WW DX CW contest this weekend. Making sure the contest logger works (N1MM), try out the CW macros along with the K3, test out the antenna on all the bands and finally make up some goals. I find by doing some prep work before the contest Murphy does not rear his head as often during the contest. Early last week my Tigertronics Signalink USB came in and it was my ticket to get into the digital world. Years ago I had a Yaesu  FT-1000MP MKV I had the Rigblaster Pro along side it. I dabbled in PSK and was into RTTY contesting at that time. I had hopes of setting things up and getting on the surf board of Digital communications last weekend.
Well that dream was short lived, the memories came back of sound card setup, adjusting the ALC level and basically getting everything just right for the digital engine to purrrr. Over the weekend the setup was not purrrring at all it was more of a hisssssss.  The connections between my K3 and Signalink were smooth going. The PC recognized the on board sound card in the Signalink. At first I ran into some trouble setting up the CAT connection between the K3 and software  (Ham radio delux's digital master 780) I was able to decode PSK signals with Digital Master, in transmit with the K3 set at 100 watts I was able to use the TX control on the Signalink to raise the output power to what I wanted (5 watts). The unresolved problem is I am not able to get any ALC reading on the K3. I know the ALC is very important to a clean signal. I have given up trying to solve this problem at this time. I am as I said concentrating on the CQ WW DX CW contest.

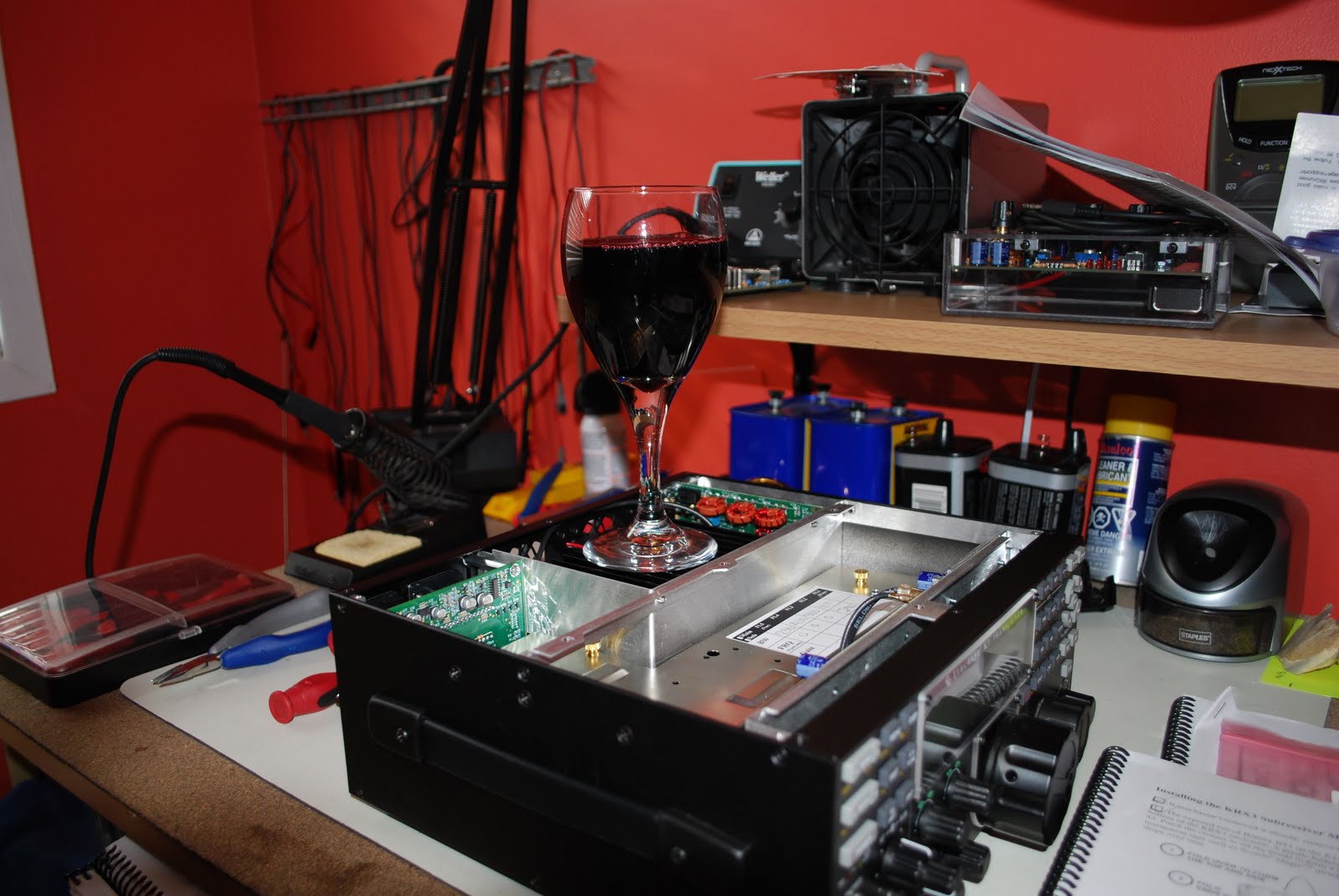

All done... an event worth celebrating

In my last post after installing the general coverage receiver in my K3 and all was

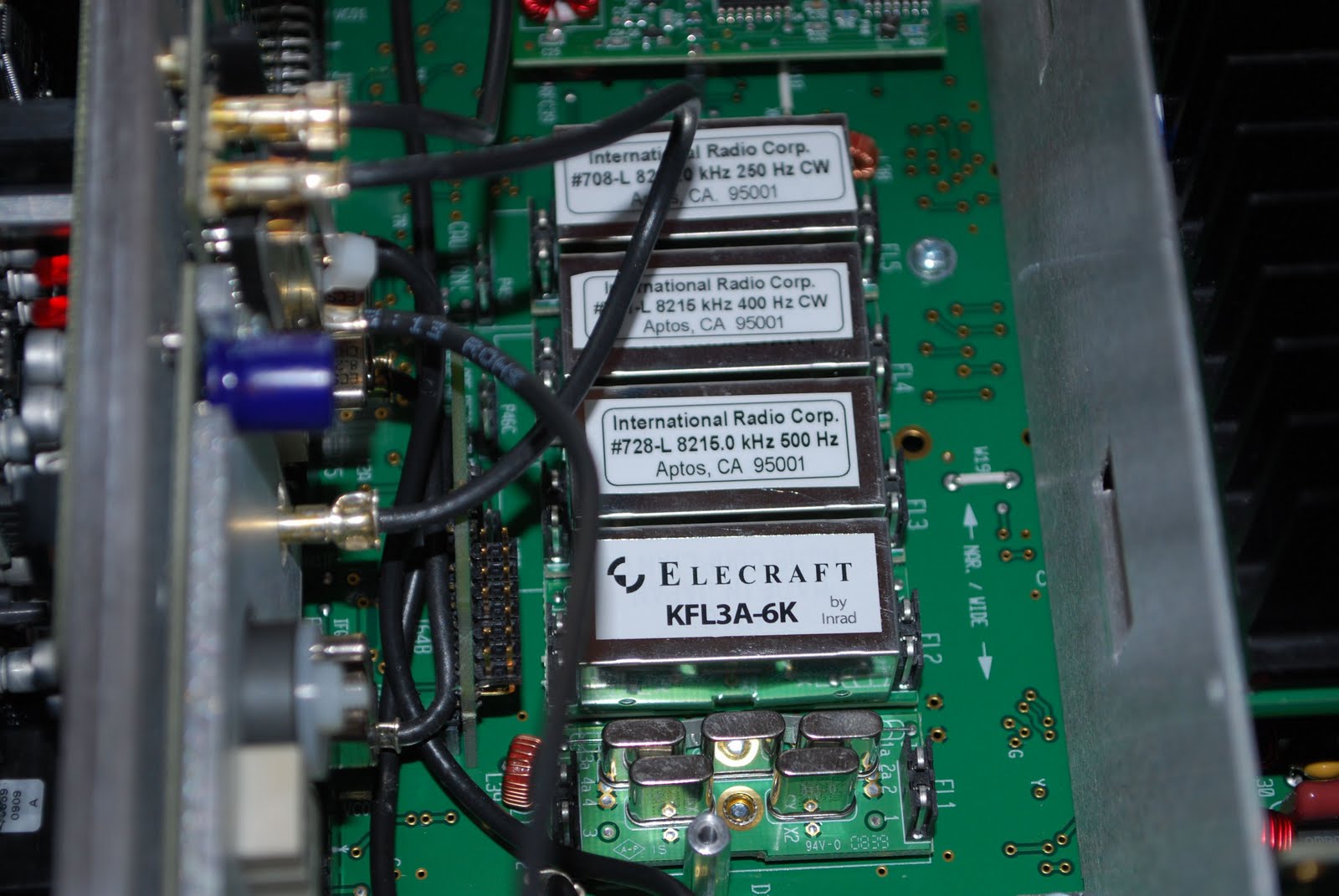

Before the change

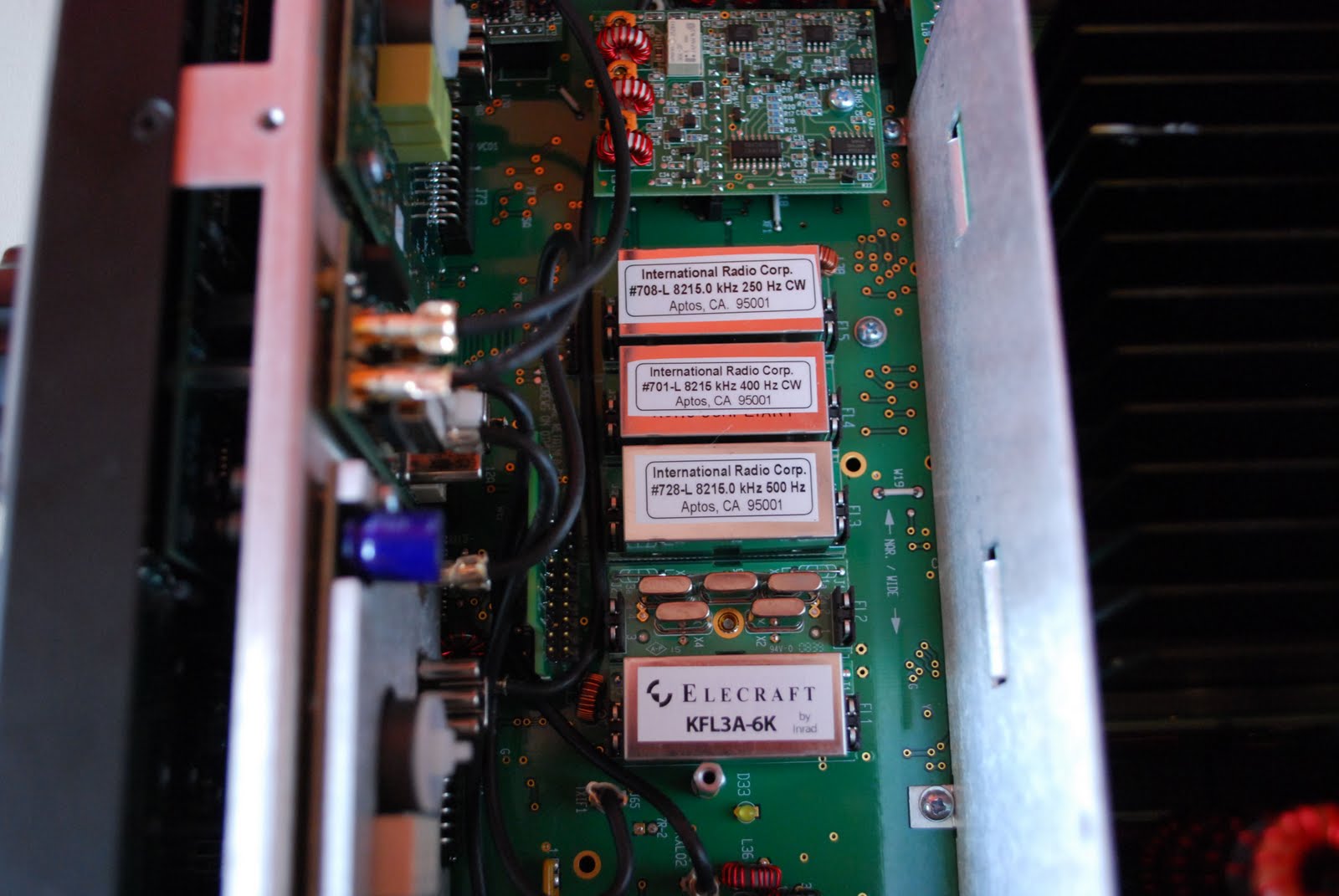

After the change

put back together I realized I had not put the filters in descending order. For some reason I started with the 2.7khz and then the 6.0khz. So it was now time to disassemble the K3 AGAIN to switch the order of 2 filters. While the rig was apart I also wanted to open up the sub-receiver....what the heck eh. It has it's own set of filters which had to match the main receiver's order of filters.

The sub-receiver apart filters switched

sub-receiver back together now to change labeling

All of the sub-receivers filters had to be moved down one slot. The "event"  went a bit more smoothly this time it was like I had just taken it apart.....wait....I just did!! All is back together now and working great.

KBPF3 board

The mess

About 2 weeks ago I emailed my order into Elecraft for the KBPF3 general coverage board. It arrived on Thursday and was placed off to the side until Saturday. I did my reading to familiarize myself with the installation. It seems I was not familiar enough as I made an amateur mistake but more on that later. My K3 has the sub-receiver installed so I have the choice of putting the general coverage unit in the main or sub receiver. I choose the main receiver. So the first order of business is to get the work bench all cleared off and get the K3 on it. That is easier than it sounds as the back of the radio desk is a snake of wires and cables. Before taking ANY cabling comes off the K3 I made notes of where all the cabling came from and went too. In the past  it was delusional of me to think I can just "remember" where all the cables went on the

K3 hookup

back of the K3. So it was off to the bench with the K3 and the ESD band went on!! Removing the top cover was very straight forward and exposed the insides of the K3. Now I don't know about you but I am never thrilled about digging into the K3 and adding and removing parts. The Sub-receiver was the first item to be removed. There are 3 TMP coaxial cable connections that have to be removed. Unfortunately I have nice fat farmer's fingers I managed to remove the cables and pull the sub-receiver out.  This exposed the main K3 board where the KBPF3 was to be installed and a new 8 pole

Top cover off

6khz filter to be added. The general coverage kit came with 2 standoff's for mounting the board but in Elecraft's wisdom the standoff's were already on the main board.,so that was one step I could forget about. The KBPF3 board fit into place very smoothly the only concern was mating the KBPF3 connecting pins to the main board. That was done by feel and was only known if it was done correctly when the stand offs on the main board matched the holes on the KBPF3 board. Then it was time to install the 6khz 8 pole inrad filter. The filters have to be installed from wide to narrow. This meant it

Sub-receiver

was time for me to move filters around to accommodate the new wide filter.  Removing a bottom cover was in order to expose the filter's fastening screws.  With the KBPF3 board in, sub-receiver back in....just a note of caution make sure the plastic cover is  on the battery on the K3's main board. If it inadvertently came off and was left off it will come into contact with the sub-receiver's case and that is not good. Next all the covers went on

KBPF3 installed

and it was time to hook the radio up and turn the general coverage board on in the K3's sub-menu's. Also setup the new filter within  the elecraft software. This is when it hit me....I MADE A VERY AMATEUR MISTAKE!! The filters have to be installed wide to narrow bandwidth. I checked out my pictures and sure enough for some reason (brain dead

Note the wrong order of filters!!

moment) I have the 6khz filter after the 2.7khz filter. I have not done it yet but I have to take the whole radio apart to switch the two filters around. After that mistake I stopped for the evening I won't check out the general coverage until the filters are switched around.

Bottom cover off
