I’ve been spending a few hours playing around with a FUNcube Dongle Pro. There was a lot of excitement about this project a couple of years ago when it started. In order to get one you had to be quick off the mark on Ebay. I never succeeded, then I got ill and then I forgot about it. This one was passed on to me by a friend who successfully purchased one but never used it.

I started off by following the instructions in the user manual. I followed this by installing and setting up a complicated-looking SDR program called Spectravue. I was baffled by most of this program’s settings and I wasn’t sure if it worked.

What I should have done was try some of the SDR programs I installed when I was playing about with USB TV dongles at the beginning of the year. I started SDR#, selected the FUNcube Dongle from a pull-down list, clicked Start and it just worked!

Simon Brown’s SDR-Radio worked as well, and with equal ease, though as luck would have it I tried it on the very day that the (free) licence key for the program expired. This appeared to come as much of a surprise to Simon as everyone else. As I type, Simon has just uploaded a fix which I have yet to install.

I thought I would try using the FCD as an ADS-B receiver which I did with the TV dongles but I soon discovered that I can’t. The FCD looks like a budget USB sound card to the SDR software, so its bandwidth is restricted to 2 x 48kHz. The digital TV dongles can transfer a much wider bandwidth. This is noticeable if you try to receive Band 2 FM radio – through the FCD the signal sounds distorted on peaks because the bandwidth isn’t quite wide enough for FM stereo which needs a full 100kHz..

It will be interesting to use the dongle with the FUNcube 1 satellite when it gets off the ground later this year (we hope!) In the meantime I’ll use it to watch for Sporadic-E in the VHF band.

My operation to remove my gall bladder was successful. Now I’m supposed to take it easy and avoid strenuous activity for a few months. No more five mile walks for a bit. It looks as if I will be logging more time in front of the computer and radio for a while.

The operation to migrate this blog to a new generation Blogger template has also been completed. Comments are now working again, but I’m not happy with the header graphic. I had to go with what I could make given my absence of artistic skills, rather than what I would like to have done. So there may well be some more changes in that area to come.

I had hoped to use a smart looking template from a free templates site. But at first I couldn’t find how to load it into Blogger. So I started off with one of the standard Blogger templates. As I was customising that I accidentally stumbled across the option to load a template from an XML file. Working in Blogger is like being in a maze, remembering seeing the tool I wanted but going round in circles until I located it again.

The problem with the custom template was that I found it contained some things I didn’t want, and the Blogger visual design tools didn’t allow me to remove them. It would probably have been necessary to edit the XML, but that is a step beyond my expertise. So in the end I went back to the modified Blogger template. I’m happy with the layout now, and commenting works again which was the reason I was forced to change. In fact I now have Google+ commenting which if you haven’t tried it is much better. But I’d still like to find something more radio-themed for the header graphic.

I know when summer is here when I have to keep on tweaking the tuning of my MFJ magnetic loop antenna throughout the day. Having an antenna farm in the attic (or loft as it is more commonly called over here) protects the antennas from the depredations of the elements but it does subject them to extremes of temperature during the summer months. As the loft warms up during the morning the metal of the magnetic loop expands. Because the magnetic loop is a very sharply tuned antenna this has an effect on the SWR. I don’t know what the temperature in the loft reaches on a sunny day but I wouldn’t want to go up there.

I’m not talking about a small change. I may tune the antenna to achieve a 1.2:1 SWR first thing in the morning and by lunchtime it can have increased to 2:1 or more. This wouldn’t be so noticeable if I was moving around the bands retuning as I go. But I use the magnetic loop for my 30m APRS station which stays on 10.1473MHz all day and every day. (It does a jolly good job there, by the way.) If I don’t pop into the shack now and again and give the antenna a quick tune I could be subjecting the transceiver to a higher SWR than is good for it.

The magnetic loop is the only antenna I have that will cover 30m, so I don’t have any alternative for my APRS system. This need for retuning affects all the bands I can use the loop on, not just 30m.

I suppose my multiband dipole also expands and contracts with temperature, but because the tuning is broader the effect on the SWR is less noticeable. Outdoor antennas have their tuning affected by rain or ice, of course, so I’m not alone in having to put up with weather effects on my antennas.

Today there has been a really big Sporadic-E opening on 6m which lasted for several hours. In fact it is still going on as I type this.

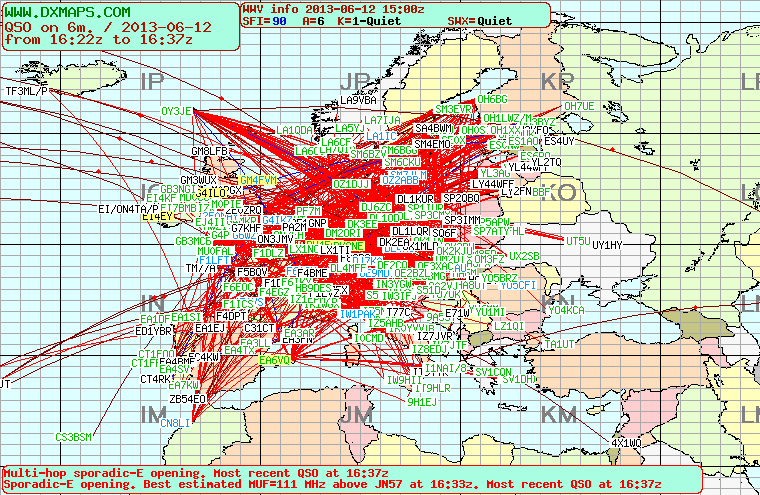

This snapshot of activity from DXMaps gives an idea of what the opening was like at its peak. The whole of western Europe must have been covered by a reflective Sporadic-E cloud!

From DXMaps I could see that the opening extended up to 2m for a time, though I didn’t hear anything myself. Unfortunately my QTH is poor for VHF so conditions have to be exceptionally good for me to hear any 2m DX let alone work it. So 6 remains my favourite VHF band.

I made several 6m contacts on SSB and several on PSK31. The most interesting call was LY44WFF, a DXpedition to Klaipeda, Lithuania KO05oi which is quite a rare square so I’m told. Best DX on PSK31 was probably David, 5B4AHY.

I never quite know how to answer calls on 6m PSK31. Some operators seem to use quick, contest style operating while others reel out their name, QTH, EPC number and so on. I prefer the quick format myself, with the aim of getting the contact completed before the conditions fade out. But if someone wants to exchange a bit more information I try to do that too.

A station operating RTTY was an unwelcome presence among the PSK just above 50.250. One RTTY station came up right smack on top of someone operating PSK63. Surprisingly I got perfect copy of the PSK63 station which was straddled by the RTTY signal! Surely it is time to abandon this old, wide, slow outmoded mode?

If you have used a Yaesu FT-817 on SSB you’ll have probably been annoyed by the lack of a TUNE button to generate a steady carrier for antenna tuning. You usually have to press the MODE button a few times to select FM or PKT, use PTT to send a carrier, then change mode back to USB or LSB. It isn’t one of life’s greater annoyances, but it’s a nuisance all the same, especially if you use an antenna like the AlexLoop which needs retuning every time you change frequency.

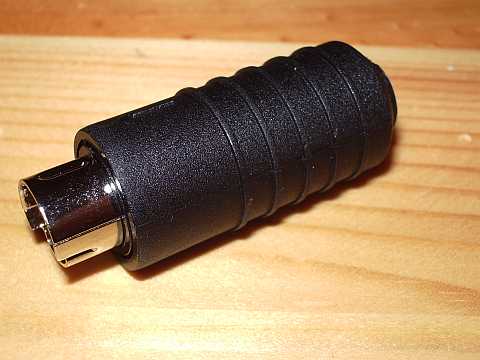

A couple of weeks ago I received a letter from one of my blog readers, John G4HUK, enclosing a Quick-Tune Dongle that he makes for the Yaesu FT-817, FT-857 and FT-897 rigs. It’s a neat little gadget that plugs into the ACC port on the back of the radio. What it does is let you generate a tuning signal in SSB mode by double-clicking the microphone PTT. Simple but effective! It won’t be so useful for home users who have a CAT cable plugged into their ACC port already, but for SOTA operators and other exponents of outdoor radio (apart from CW operators who can just hold the key down) it could be a godsend.

The Quick Tune Dongle installed on the back of the FT-817

The dongle didn’t work for me at first until I set the baud rate of my FT-817’s ACC port to 9600. This is explained in the ‘manual’. The instructions also explain how you can reconfigure the dongle to change the way it works. By default it will use PKT mode to generate the tuning carrier and ignore double-clicks made in any mode other than USB and LSB, which I think will suit most people.

I think it is an ingenious little gadget which you can get from HUK Electronics for £15.95 + postage. Here’s a video of the dongle in action.

Another warm, sunny day. It really seems as if summer has arrived. But it’s not the weather for sitting in the shack operating the radio. It actually gets a bit unbearable in the shack on warm days with all the equipment (not to mention the operator!) radiating heat.

The weather forecast is for fime weather on the next few days. I’m not complaining but dare I say it, Olga and I have been wishing for some rain – Olga to water the garden and me to see if the rain gauge of the new weather station is really working!

With some freshly charged batteries in the KX3 I thought I would see what I could hear from out in the garden. The answer was – not much. Band conditions seem to be pretty dire at the moment. True, the antenna I was using out there (a WonderWand L-Whip) is not the most efficient I could find but it is easy to tune and usually receives OK. But today I could hear almost nothing.

I have just added a review of the Nevada WH3080 Solar weather station to my G4ILO’s Shack website.

The website gets a lot more visitors than the blog so I will be adding new content over the coming months.
