Posts Tagged ‘Endfed antenna’

Endfed vs Nor’easter!

My Endfed antenna was put up on October 2nd with a few issues that I blogged about but mostly have been sorted out. Today was the test to see how it held up with some strong winds, today was the arrival of a Nor'easter here in the Maritimes. There was high winds and lots of rain, I did find that as it continued to rain the SWR on 40m could not be tamed by the LDG antenna tuner. All other bands were just fine. I was outside at one point when the rain slowed a bit to take out some trash. The one end of the antenna is just outside the back shed and I gave the Endfed wire a bit of a pluck like one would do to a guitar string. Water came off the entire Endfed antenna. I went back into the house and gave 40m a go again and all was well. I'm guessing a collection of water on the antenna affected 40m and I imagine over time more water would had affected the other bands.

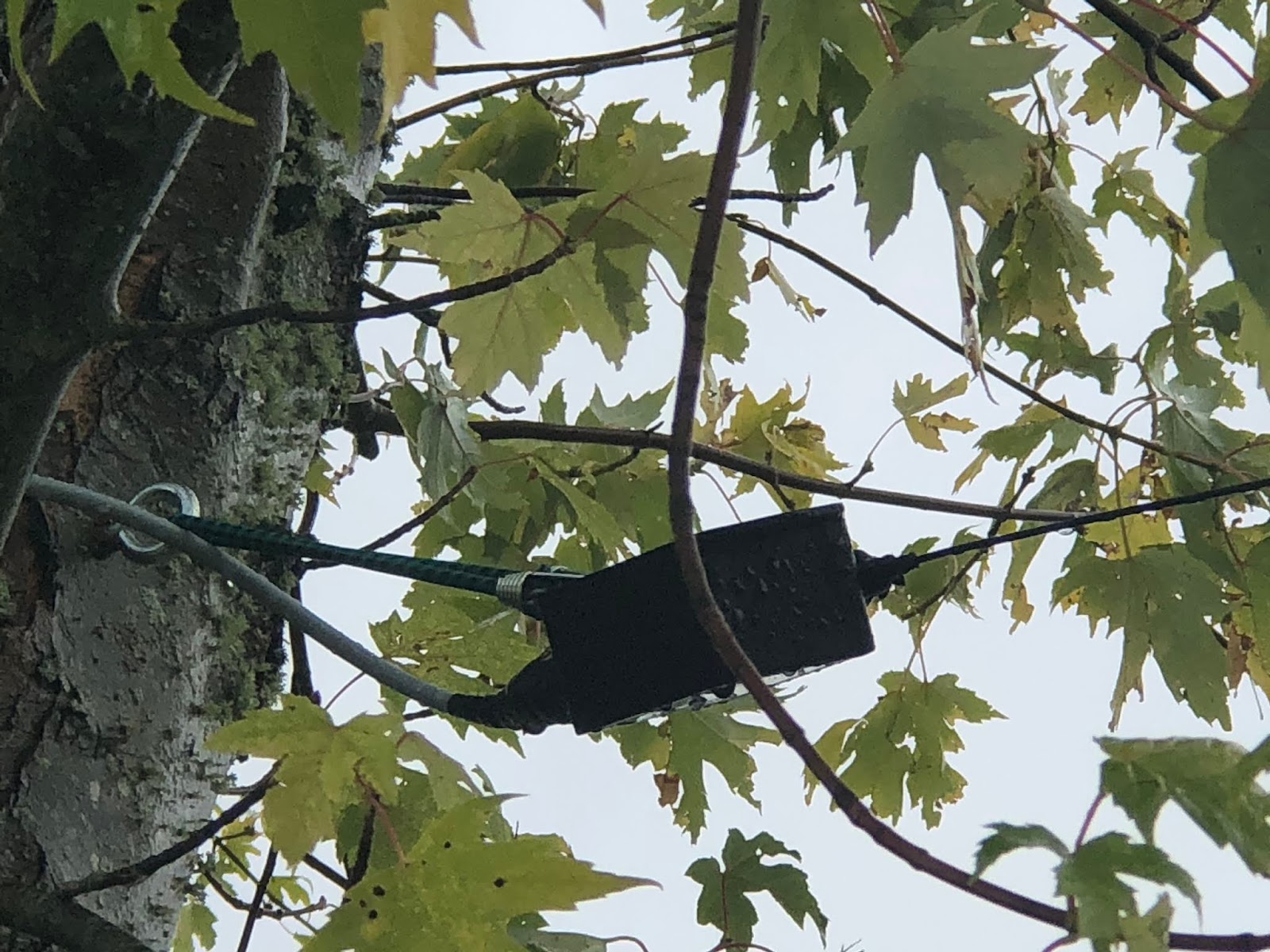

Now back to wind vs Endfed antenna, the 9:1 balun enclosure is mounted in a tree with the other end mounted at the shed. Before putting up the antenna I had to devise a way of overcoming the tree sway  and the stress it would put on the antenna. I thought about using a spring but when I went to the hardware store here in town there were none  I felt would flex before any stress was placed on the antenna, the springs just had to have to much tension before they would start to flex. A comment I received on my blog regarding this very issue was to use bungee cord. These were easy to come by at the hardware store and I decided to use it. My installation consisted of 2 bungee cords just incase one became effective and let go.
Today as the wind gusts picked up I noticed the tree that the 9:1 balun was on was swaying a lot but the bungee took up the flex and allowed the Endfed to hardly even move. Up to this point in time the Endfed only had to deal with a slight breaze but today it was put to the test and it passed without issue.

Some positive steps forward with shack RFI

Old HDMI monitor cable
I have had some positive moves forward with regards to my RFI in the shack. I am the kind of person who has to sit back and just think things over, go on the internet and step back and have a good look around. Over the past few days that is what I have been doing. I have had great feedback from my blog readers and it has cause me to think and search out ideas. This was the first time I had ever had these types of issues in the shack but then again I have never used an Endfed antenna before. With regards to my internet adventures I came to the understanding that the Endfed antennas that uses the coax as a counterpoise there can be expected issues of RFI in the shack. My Endfed antenna from W1SFR does not have a separate counterpoise connection. On their website the purchaser is informed the coax is the counterpoise. With regards to my W1SFR Endfed antenna I have contacted the owner Steve many times via email with my questions. His support has been great and Steve has been very willing to afford me as much of his time as needed.
I am the kind of person that things just don't click right away and I need time to mull things over. One  thing that came to mind was my monitor issue I was having. I was using an HDMI feed from my PC to the monitor as I always have in the past BUT in the past I was not faced with the RFI issue. Chameleon Loop antenna  and I remembered the coax that came with the antenna had a set of RF
Chameleon coax choke
chokes on the coax. The reading that I have been doing the the comments on my blog all backed up the fact that with Endfed antennas there is a very strong possibility of RF on the coax if it is being used as a counterpoise. I was able to add the coax from Chameleon to my setup with the RF choke section of coax connected to my radio. I did some testings and found my capacitive touch keyer no longer locked up, my SWR was no longer speratic and I have not as of yet checked my electronic washing machine to see if it stops but that will be when the next load of laundry goes in.
I replaced the HDMI cable with a DVI cable that had RF chokes at either end. This solved my monitor issues of it waking up from sleep mode on it's own and characters showing up on the screen.
I did on Friday end up ordering the Balun Designs 1115 Balun and it should be arriving within the next week or so. My positive tests using the RF choked coax tells me that the purchase of the Balun was a good choice. My next step will be to try out a counterpoise that is 25 feet long secured at the PL-259 that feeds the W1SFR Endfed antenna and see what this step produces. I am hoping with the new Balun, the counterpoise and changing the monitor cable will solve the issues I have been experiencing.
It now the next day and my experiment with the separated 25 foot counterpoise have been completed. I stripped one end of the 25 foot piece of wire and attached it to the outside of the PL-259 using a screw clamp similar to the clamps you see on automative rad hoses.....but much smaller. I checked the SWR on 40m, 30m, 20m and 18m and it really did not change much but what did change was the amount of RFI what was showing up on my waterfall on the 7610. I then removed the counterpoise and the offending RFI was gone. So that was good enough for me I am going to keep the Chameleon coax with the chokes in place until the Balun from Balun designs comes in.

The Endfed antenna is up but with mixed results.

The W1SFR Endfed antenna is up and things went very straight forward with the install. My options for a location a limited so I ended up having to place the antenna in a tree that beside our mini home and then down to the shed about 40 feet or so away. The antenna runs parallel with the mini home along the north side of the mini home. The feed end of the of the antenna is about 25 feet up and mounted to the tree. The far end at the shed the antenna is about 15 feet from the ground.  The coax from the antenna to the shack is about 65 feet in total as the Endfed antenna uses the coax as the counterpoise and Steve W1SRF recommends you have at least 25 feet of coax. The time came to flip the switch on my antenna analyzer and see some SWR results:

Band.         Freq.         SWR
40.              7.0001.     1.9
40.              7.070        2.5
30.              10.100.     4.4
30.              10.150.     4.5
20.              14.001.     4.5
20.              14.070.     4.3
17.              18.068.     1.5
17.              18.168      1.5
21.              21.001.     1.8
21.              21.070.     1.8

I was a bit alarmed by the results so I emailed Steve W1SFR regarding the results from his Endfed antenna. He came back with positive comments saying my results looked very normal. This is the very reason it's said that with the Endfed antennas you need to use a tuner. The next step was to connect the Icom 7610 to the whole mix and see how things worked. This is where Murphy popped his head up to give me grief! I began to transmit on 40 meters and with the power at 40 watts things started to happen around the shack and house! In the shack my PC was not running but the monitor was in sleep mode. All of a sudden the monitor would wakeup from it's sleep, on my PC desktop I have a program that allows me to post notes on the desktop when I transmitted CW I would see random letters being typed on a posted notes on the desktop, my electronic keyer would send dah's and no dits and finally our new electronic washing machine would just shut down. The other band I tried was 20m and when transmitting CW at about 60 watts the PC monitor would wake up from it's sleep but no other issues. I was wondering it it was the RF coming back on the coax or because the Endfed run parallel with the mini home is about 15 feet away from the home?
I contacted Steve again who informed me that it could be RF on the coax as it's a counterpoise. His suggestion was for me to purchase a 1:1 balun and from there see if it solves the issues. Steve suggested it may or may not solve all the issues and I may have to look at other options for unsolved issues. Well I have a decision to make....do I want to start spending more money and go down a road that may lead me to gaining more "stuff" but still not being able to use the antenna. Now I did get some comments from my blog readers who do have and are using with success an Endfed antenna.
