Blue is a nice color but not on my monitor!
Mike Weir, VE9KK, is a regular contributor to AmateurRadio.com and writes from New Brunswick, Canada. Contact him at [email protected].
QRP ARCI Spring QSO party. I was at the radio 8:30 local time with the PC and K3 humming, I was not really able to find much action on the bands most of the day for this contest. I decided to do some blogging while I was surfing the bands. Late in the afternoon my mouse stopped working and then it came back, then a short time later my screen froze. I restated the PC and I noticed some ADIF files on my desktop that normally displayed as a sheet of paper now looked like brown filing cabinet drawers, that was very odd and has never happened before. Then it happened the screen turned blue, there was long string of codes displayed and then a memory dump and a restart. The PC seemed stable once it restarted but after a short time the same happened again and again. I was able to boot in safe mode and access Event viewer and see the error codes from the blue screen. From there I did a google search and found it could be a RAM, heat or a CPU issue. At this time Julie and I had to go out so I shut the PC down, 3 hours later I restarted the PC and it seemed to work without issue. This lead me to believe it was an overheating issue and I would look into it in detail on Sunday.
Below is what I did on Sunday to sort through this issue:
I began with opening up the side panel on the tower checking for dirt, dust loose wires. The PC was clean and no loose cables.
I then started the PC while checking to see if the fans on the CPU and video card were working and they both were.
I did notice the video card was mounted right on top on my video capture card. The heat of the capture card was rising up to the video card. So I moved the video card to give it more room on the mother board and to give it more air flow.

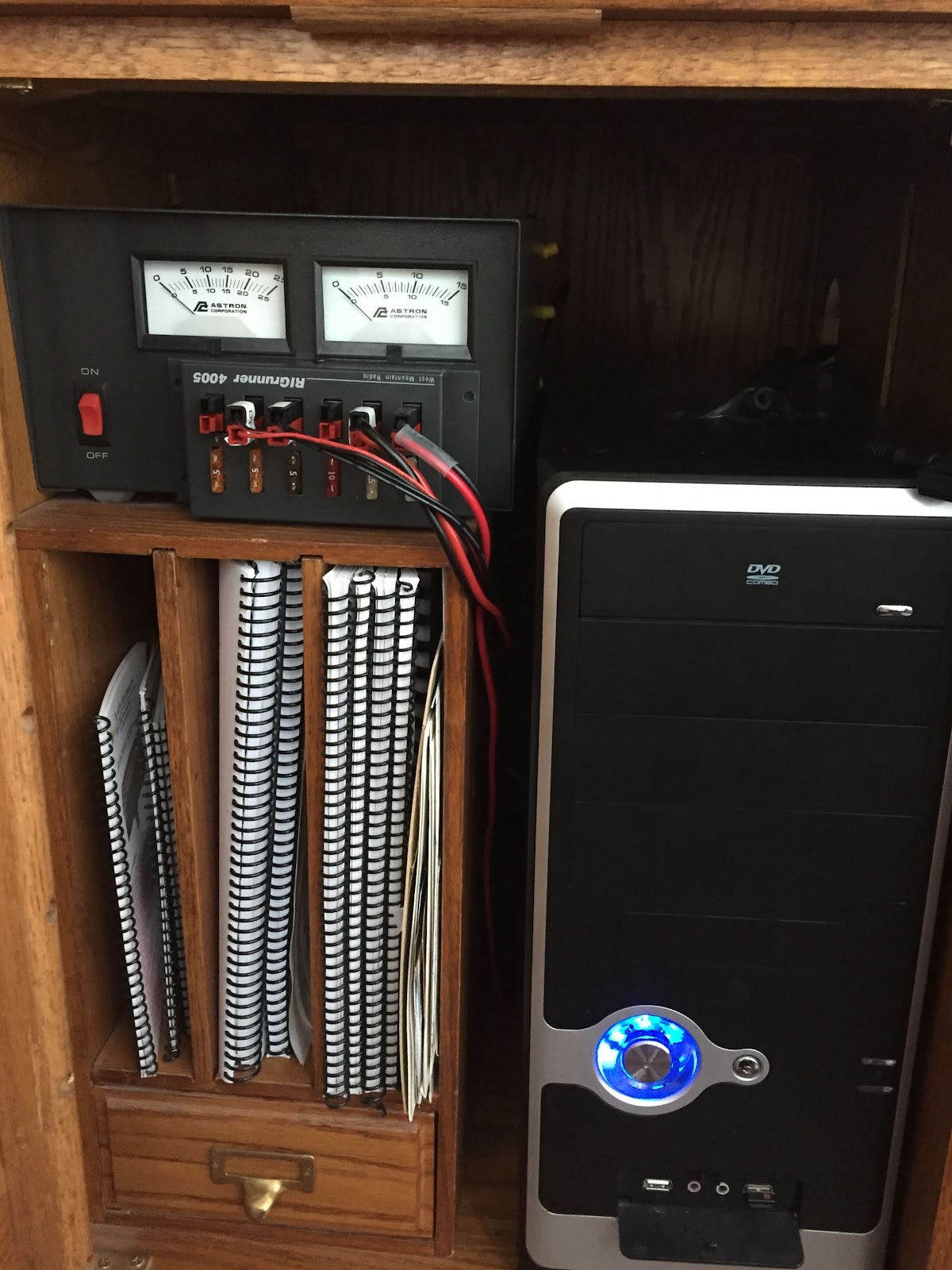

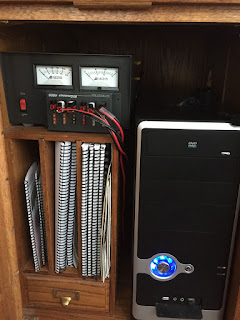

I then downloaded CPUID HWMonitor and Coretemp his way I could see temp readings of the system. HWMonitor showed the video card was running hot at 60C and higher when the card was being used The CPU fan seemed to be cycling a lot from low to high speed as the temp rose. What adds to my heat problem is the PC is located in my roll top desk tucked in a “cubby” with no air flow. Also in the same location I have my Astron power supply that was on all day feeding my K3. I removed my PC from the location in the roll top to the floor and the temperature improved but still a bit high.
To improve my cooling I have ordered two fans for the tower to have air flow in and out of the tower, also I am removing the desk back panel in lower section to allow the hot air to escape.

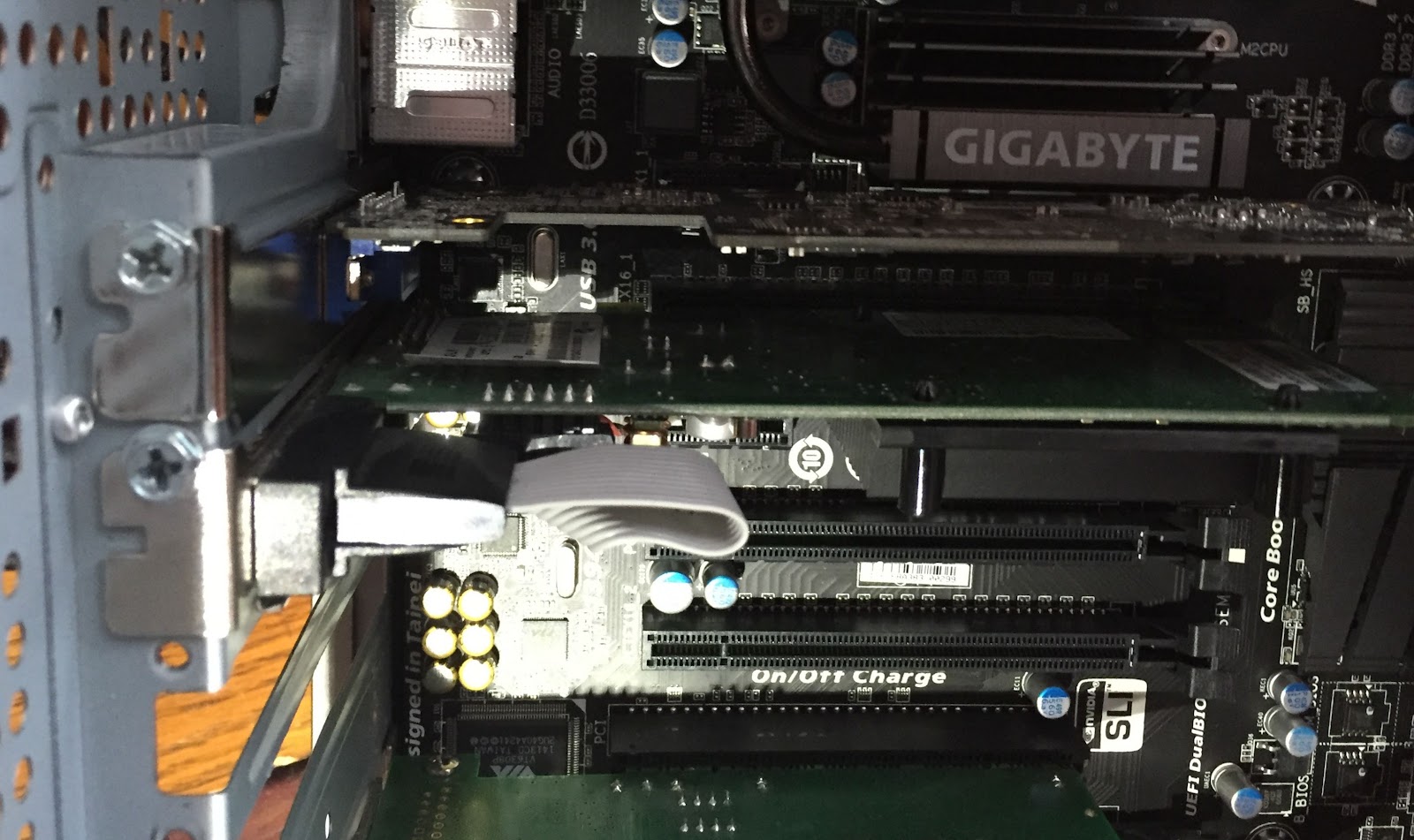

|Video card moved to bottom|
Next I wanted to check all I could on the PC to make sure all other components were running ok as this may just not be a heat issue.
I did the following:
1. On each of my 3 drives I ran Check disc and all drives passed.
2. I ran memory check to see if the ram was ok and it passed.
3. Spybot was the next program to run which found 20 issues and repaired them.
4. CCleaner found some issues and repaired them.
5. I then defragmented all the drives.
6. Avast did a virus scan without any issues
8. I then went into the BIOS and changed the CPU fan setting to run full speed all the time. This significantly reduced the CPU temp.9. I then for the heck of it updated the BIOS as well.
I was on the PC most of the day today and part of the evening and there was no issues. I am hoping it was just a heat issue and by adding the tower fans and opening up the back panel the issue will not happen again.
set up to do a mini-dump rather than a full. next dump you can run dump analysis and find out more about exactly process what crashed. sometimes its helpful, sometimes not. video card firmware up to date? driver? good luck om.
You did everything I would have done a more….That said a friend of mine had a ton of issues and I had him do a disc clean and defrag and all his issues went away. Since you have a tower and like mine, probably don’t open and blow it out very often, doing inside cleaning was probably a good idea…Guess what i will be doing this week….
Good evening Jeff, yes that’s a better idea than doing a google search for sure. I have been looking around on the internet as well and seems a program called Whocrashed comes well recommend and it’s free as well. As for the video card I was updating the card each time the Gforce card said there was an update….then after one update the card was acting very funky and I wended back to the previous version update and all was fine. So I am a little gun shy about updating the card.
Thanks for the great advice.
Hello Harry always nice to hear from you, it sure is a good idea to get into the PC and blow it out and just make sure the dust build up it not affecting the cooling. This weekend I will be adding two fans to the tower to help out with the cooling as well.
Have a good week.
