The weekend was busy, with lots of stuff to do in order to get ready for Mother’s Day, as well as actually celebrate it.  Even though I did not have much radio time, I did manage to get some time in behind the K3 and some good things happened.

The first good thing to happen this weekend was a package that arrived through the mail on Saturday:

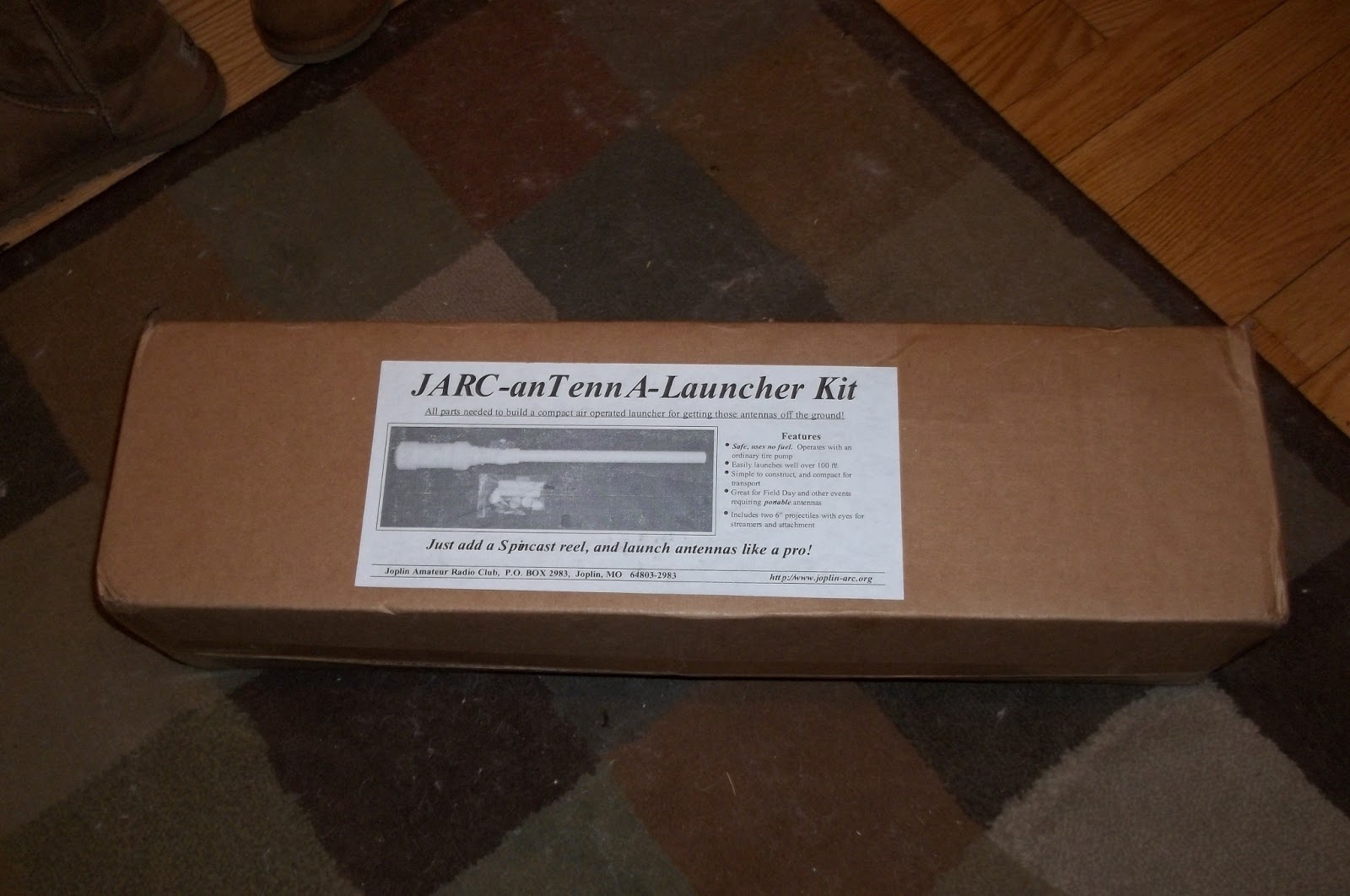

Yes – my JARC Antenna Launcher Kit arrived through the mail. Thanks you Joplin Amateur Radio Club! This is going to be a tremendous help with portable operations this summer.

Late Saturday afternoon / early evening, shortly after my weekly Echolink ragchew with W3BBO,  Bob sent me an e-mail, letting me know that 15 Meters was wide open and that he had worked Z81X in the Republic of South Sudan.  I had just finished washing the floors, so I put down mop and bucket and ran down (literally) to the shack.  Sure enough, there was Z81X on 21.030 MHz, working split and sounding louder than all get out.  The pile up was tremendous!  So following my tenet of when the pile up is fierce and it’s a new one,  to  “Work ’em first, get ’em QRP later”, I turned the K3 up to 85 Watts.  After a half hour of chasing, I landed them in my logbook.  Z81X was like one of our wiley Foxes in the QRP Fox hunts in that he kept moving his listening frequency.  Once I established the pattern, and inserted myself in his path, it just became a matter of time.  Bob worked Z81X at 23:08 UTC and I got him a mere half hour later at 23:38 UTC.  Bob checked the on-line log this morning; and yep, we’re both in there. Sweet – a new DXCC entity for both of us!

Then today, I got some time this afternoon behind the dial and got two more new DXCC entities, and these I worked at QRP power.  15 Meters was hopping and netted me UN3M in Kazakhstan, as well as RI1FJ in Franz Josef Land.  The pile ups in these two instances were very small, so I tried QRP from the get-go here and was richly rewarded in both instances.  When the competition is not so fierce, you can afford to “be a purist”.

There was another station that I worked on 15 Meters that caught my ear, as it was a long and strange call sign – LZ1876SMB.  I have worked Bulgaria many times with QRP, but this was a Special Event Station to commemorate the Bulgarian Saint Martyrs of Batak.  A little Googling revealed that these were 700 members of the Bulgarian Orthodox Church who were martyred for their faith in an uprising against Ottomans in 1876.

If you go on QRZ, you’ll find out that LZ1876SMB is just one of many stations that will be on the air commemorating the Bulgarian Saints. For us Stateside ops, if we work five of these different LZ Saints Stations, a very beautiful diploma can be earned.

One down – four to go. I am going to keep my ears open for these stations. Bulgaria is usually (although not always) a fairly easy trip from NJ via QRP.

72 de Larry W2LJ
QRP – When you care to send the very least!

The weather today in Central NJ was a very sunny 72F (22C) when I headed out the door from work at lunchtime.  I wanted to accomplish two things.  I wanted to try the 18 MHz wire that I cut for the PAR ENDFEDZ, and I also wanted to set up the Jackite pole again using my drive on mast holder.

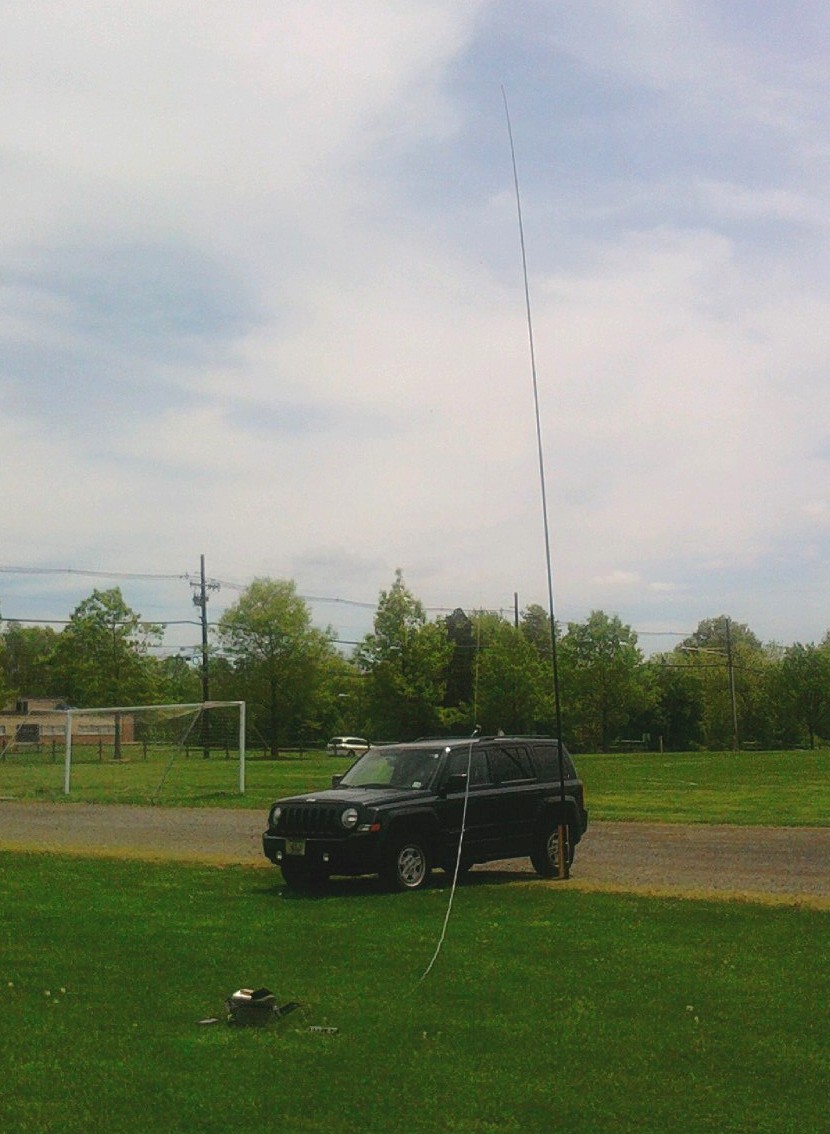

I went to the same park that I went to last week; but I went to the other side.  This was away from the tree-filled picnic area and towards the soccer fields and some other baseball fields.  I set up right in the parking area:

Set up went very fast, and since the 17 Meter wire is much shorter than the regularly supplied 10/20/40 MKII radiator, I needed to use a piece of coax that I normally carry for when I use the Buddistick.  I called CQ and was answered by Mike K8NS who lives in Florida, in the Daytona Beach area.

Mike was 589 here, and he gave me a 569 in return. Copy was solid in both directions. Mike was using an Icom IC-725 to a vertical antenna.  My PAR ENDFEDZ was more or less a vertical, although it did slope somewhat.

It was just turning 90F (32C) for the day at Mike’s QTH; but he informed me that there was a nice off shore breeze that was keeping things bearable.  I couldn’t stay too long as I had to get back to work; but it was a rewarding effort.  I made a QSO, the wire worked well and the drive on mast support continued to work like a charm.  A very productive lunchtime, indeed.

What’s that about the blog post title, you ask?  Well, off to the right of me, about 75 yards or so was a very big, open field.  There were some older gentlemen there flying RC model planes.  I was watching them while I was operating; and I guess they were watching me.  One of them came over, of course, to ask what I was doing and I started explaining about Amateur Radio (you would think model RC pilots would know something about radio).  He asked me if I was actually working anyone, so I took the earbud jack out of the KX3, so he could hear me as I worked Mike K8NS.

“Morse Code ….wow! People still use that?”

“Yes”, I replied. “It’s still very popular”.

“Isn’t that nice.  It’s good to know there are folks out there using older technology than what I use.”

I started explaining about SDR, microprocessors, SMD technology and all that; but I was getting a glassy-eyed stare (and you could almost hear the crickets chirping), so I ended up just letting it go at that.

72 de Larry W2LJ
QRP – When you care to send the very least!

I got another new DXCC entity into the log tonight; but it was not QRP, and even at 85 Watts it was a bit of a chore.

The station was A61Q and the entity was the United Arab Emirates. The band was 17 Meters. For whatever reason the DX op decided not to work split; but to stay simplex.  That made for pandemonium.  I found him by tuning around, and when I saw/heard the pileup, I checked the cluster, and sure enough, he had already been spotted multiple times. It’s no exaggeration to say that a melee ensued.

At the beginning, he was as loud as A45XR was from Oman the past couple of nights.  I thought I stood a good chance with QRP and started there.  The pileup was a zoo and I threw out my call many times with no luck.  I sensed a pattern – A61Q would call “CQ DX” and the ensuing cacophony of chasing stations followed his “K”.  It turned out that he was working stations that he could pick out as the calling died down, and everyone started listening (funny how that works, eh?).

As I sensed his pattern, I thought I stood an even better chance. But then the inevitable started happening – the band began to change.  He went from 599+++++ to 599++, then eventually 599+, and then eventually just 599.  At that point, he looked like he might fade fast; so I decided that discretion was the better part of valor and turned the K3 up to 85 Watts.  It took about a half dozen calls or so (waiting for the avalanche of calls to die before throwing mine out), but I finally heard my call coming back to me.  We completed the exchange (stations were actually calling him while he was still working me!!!) and I listened for a while as I put the QSO information into my log.  Within the next ten minutes A61Q was becoming covered by the background noise.

I heard plenty of other DX; but for some reason QRP just wasn’t working for me tonight.  I didn’t hear any more new entities; so after A61Q I kept it to 4.8 Watts (I always stay just a bit below 5 Watts – call it a quirk).  I did end up working N4FOC on 20 Meters and then John N8ZYA on 30 Meters before pulling the plug for the night.

Getting back to the pileup situation, though. Folks – the most formidable DX weapon you have is your ears. Use them!  You have two ears and one key (or microphone) – that should tell you something. Listening is more important than transmitting.

It seems like when “exotic” DX comes on the band, people just snap and go crazy or something.  Here we have a station working simplex, which is bad enough – but we also have a gazillion or so chasing stations that just aren’t listening!  When the DX calls “WB4?” – why are W7 or N6 or AA5 stations throwing out their calls?  Isn’t it deathly obvious that he’s trying to work the WB4 station?  And please don’t tell me you thought the was calling for something else.  You know, if you couldn’t hear him well enough to know that he called “WB4?” then you shouldn’t be trying to work him in the first place.  Just because a DX station is listed on the cluster doesn’t mean that you should click your mouse and immediately start throwing out your call. See if you can actually hear him first, OK?  If you can’t hear him, how are you going to know that he’s calling you back?  Common sense, right?

If A61Q had worked split, the situation might have been better, but that assumption is not a lock, either.  But if everyone had been listening and not sending out their calls needlessly while simultaneously foaming at the mouth, then the DX station could have worked a whole bunch more stations than he had.  The pandemonium slowed things down exponentially.

72 de Larry W2LJ
QRP – When you care to send the very least!

And sometimes “the next time” is the next day!  That was the case for me and A45XR in Oman.  Where I was unsuccessful last night, I scored tonight.  Chris in Oman was VERY loud into New Jersey at the very end of 20 Meters – 14.005 MHz.  He was 599+ loud.  The kind of loud that you know in your gut that if you stick with him (and he doesn’t QRT), you’ll get him in the log. As I was listening to him pick off the stations, I heard him come back to Chris KQ2RP (author of Signal to Noise – KQ2RP), who lives all of 28 miles from me as the crow flies.  When I heard Chris A45XR work Chris KQ2RP (hey, that was a 2X Chris QSO!), I really started to feel confident.  And I was in the log about 5 -7 minutes later. First time to work Oman and via QRP. Life is good!

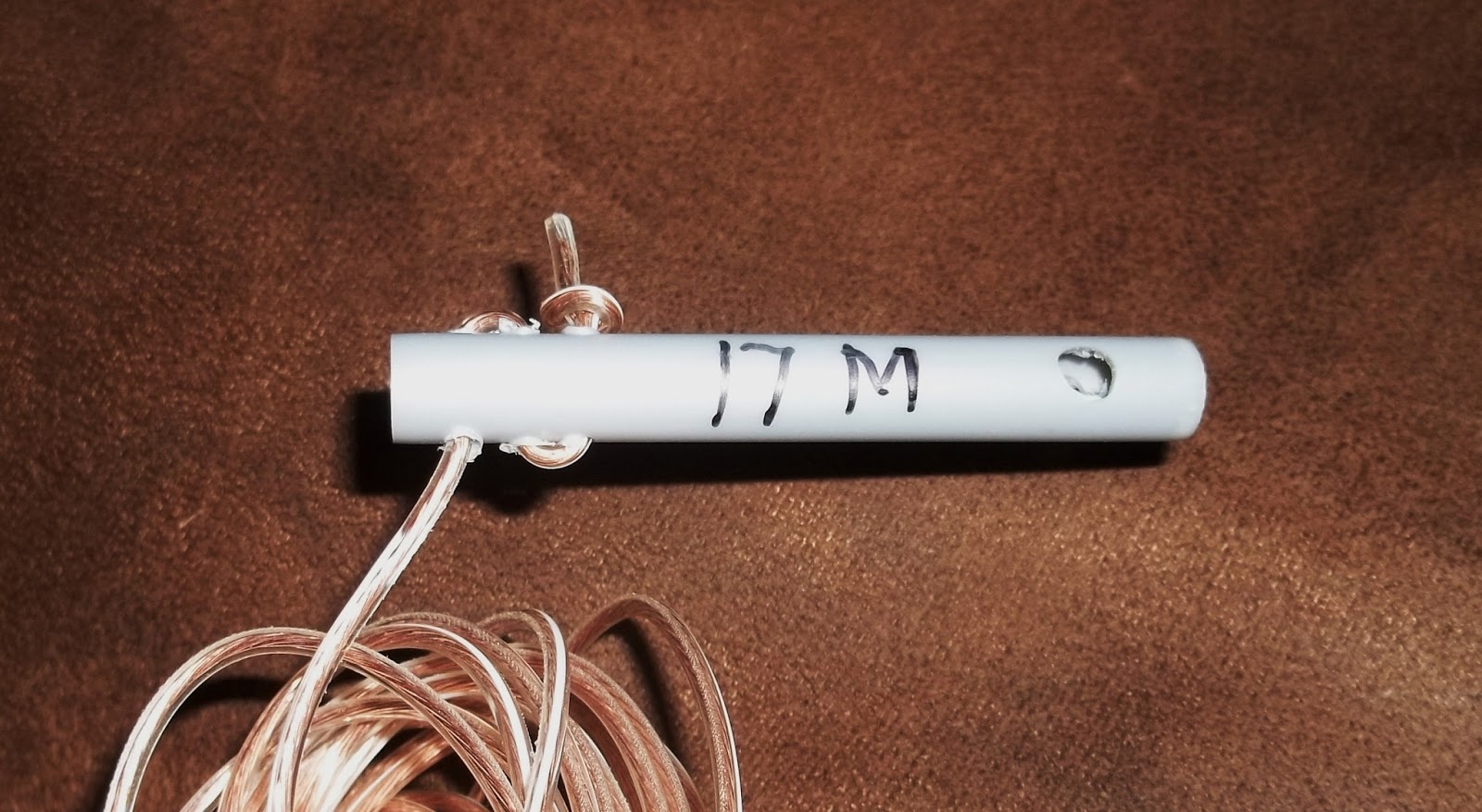

BTW, here’s a picture of the insulator I fashioned last night from the pen barrel.  Sorry about the photo quality – I tried adjusting the exposure and contrast; but you’ll get the idea.

I received an e-mail from Joel N3GSE over the weekend, informing me that it’s not legal to own a slingshot in New Jersey.  Who knew?  I had so many as a kid! I could argue (if ever questioned about it) that since it’s attached to an “L” bracket and the projectile is attached via fishing line that it’s technically an “antenna line launcher” and not a sling shot, per se. I’ll have to ask my police officer brother-in-law about it.  Another stupid New Jersey law, if you ask me.

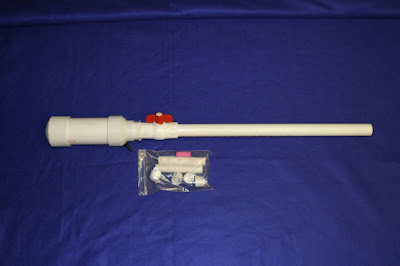

But as I was reading the statute (and I re-read it about 3 times to be certain), I saw that there was no mention whatsoever about pneumatic antenna launchers.  So I sent away for the following kit from the Joplin Amateur Radio Club:

at lunch time today. I went to the park, threw the PAR ENDFEDZ into a tree and tuned up on 18.078 MHz.  Janez, S51DX was calling CQ and he was loud so I put out my call and got into his log.

I probably won’t be able to get to the park until maybe Friday as the next two days are supposed to bring heavy rains to New Jersey.  I’m not complaining, as it’s been a very dry spring (unlike the Midwest) and we can use the moisture.

The nice thing about the PAR ENDFEDZ 10/20/40 MKII, is that you can remove the factory supplied radiator and replace it with your own for any bands from 60 Meters through 10 Meters.  This evening, I cut and tuned a radiator for the 17 Meter band.  I used 18 gauge stereo speaker zip cord and pulled it apart. The other half I will use for a 15 Meter radiator.  I soldered a ring lug to one end and then had to figure out an insulator for the other end.

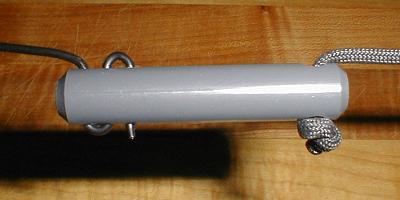

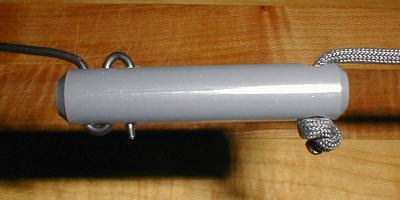

The insulator that comes on the factory radiator looks like this:

I don’t have any solid plastic like that so I used the barrel of a stick ball point pen.  I cut it in half and drilled some holes and used the PAR insulator as a template.  Since this is always used as a very temporary installation, it will be more than adequate.

I saw on QRPSPOTS that John N8ZYA worked A45XR in Oman using 3 Watts and his indoor random wire antenna.  Great catch, John!  About 90 minutes later, I was giving it a shot using 5 Watts.  By the time I got on though, 17 Meters was changing, and even though the Omani station was still loud, he went QRT for the evening. Maybe next time.  That’s the thing you learn with QRP – there’s usually always a next time, even if it takes 15 years for someone to take another DXpedition to that island!

72 de Larry W2LJ
QRP – When you care to send the very least!

And I’m not talking about antennas …….

Beautiful day again here in New Jersey – but extremely busy!  Lots of chores, lots of running around and I didn’t get everything accomplished that I wanted to.  But even at the end of a busy day, it’s nice to step back, take a breath and spend a few minutes engaged in “The World’s Greatest Hobby”.

This was nice as it ended up being an actual QSO.  As it turns out, it ended up being a K3 to K3 QSO!  I was at 5 Watts and Mario was at 100 Watts. We gave each other 579 reports. I was on the Butternut while Mario was on his Hy Gain vertical – so it was a K3/vertical to K3/vertical QSO.  We exchanged weather information as a matter of course; and again, I was surprised that New Jersey was just a bit warmer than Pesaro. Of course, I’m the typical American who assumes it’s always warmer on the Mediterranean than it is here!
