Using WSPR for some band analysis

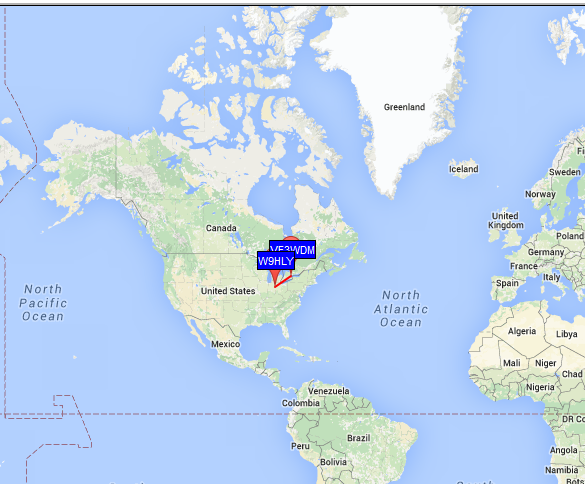

My wet noodle on 40m WSPR on Dec 30 2200 UTC

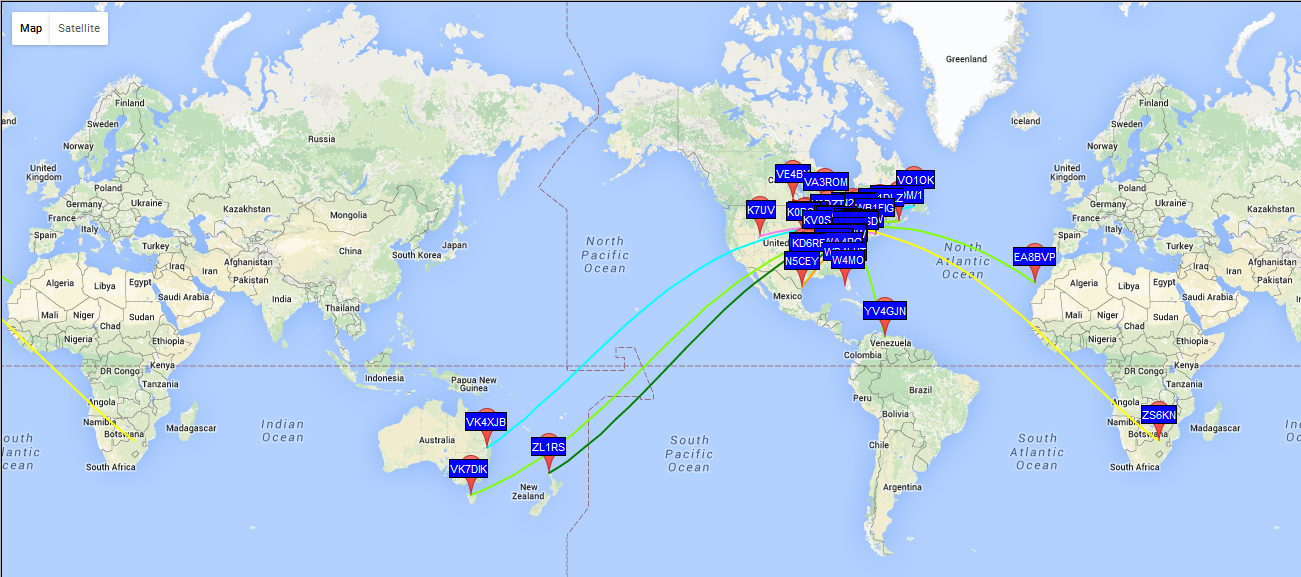

30m results at 2100 UTC Dec 30th


Over the holidays I was able to get some time to activate WSPR (at 5 watts) using WSJT-X version 1.6 the latest version which now includes WSPR. I wanted to investigate band activity with relation to UTC time from my QTH using my MFJ 1788 loop from the balcony. I started WSPRing on Dec 30th on bands I thought to be the "good" bands such as 15, 17 and 20m. From the UTC times of 1600 to 2200 I netted zero results on these bands!!  It could had been due to poor propagation on these bands as I had very poor results. 30m was my best band of all the test bands for that day. I did confirm that my MFJ loop is just a wet noodle on 40m as I was only spotted by two very local stations on a band that seemed very busy.
17m from  1500-1550 UTC Dec 31
I was on again on Dec 31 testing to see how the propagation gods were treating me that day. It turned out that my faith in 17m and 20m was uplifted a bit with some decent results. and once again 30m seemed to be consistent. It would seem from my limited testing that 30m is the band for me to go to on evenings when I get in from work. Also 20m but it may be more hit and miss. During the day on weekends 17 and 20m seem to be a charm. But then again there is always propagation that plays into the numbers and then just good old luck. I try not to just play these numbers games all the time. In the past (as I am sure most reading this post also have had it happen) there has been times when a band should be shut down and I make an amazing contact against all the odds.

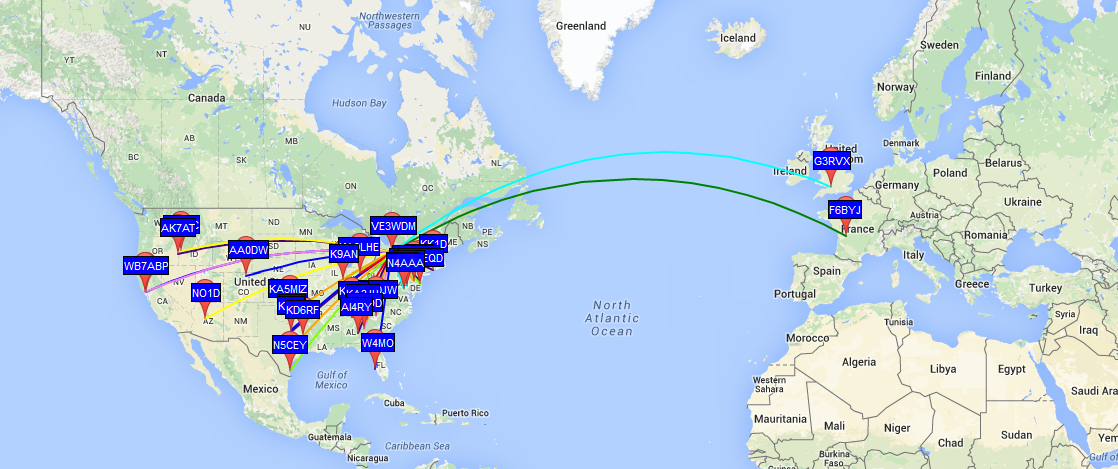

20m from 1600-1700 UTC Dec 31

Mike Weir, VE9KK, is a regular contributor to and writes from New Brunswick, Canada. Contact him at [email protected].
