High levels of geomagnetic activity have usually, but not always, been the kiss-off-death for LF/MF propagation.

These past few months have seen fairly regular field disturbances, often pushing the K index to a level '5' or higher. However, while usually attenuating the east-west and northerly polar paths, the Trans-Pacific path often seems to benefit from these events ... particularly last night.


Perhaps it is related to the equinox's normal preference for this path or maybe the goop the sun is sending us at this point in the cycle is different or not as energetic as it is at mid-cycle. Nevertheless it's really encouraging to see that not all disturbances are detrimental to LF propagation.

For a daily summary of all overnight activity and much more, see KB5NJD's '630m Daily Reports'.

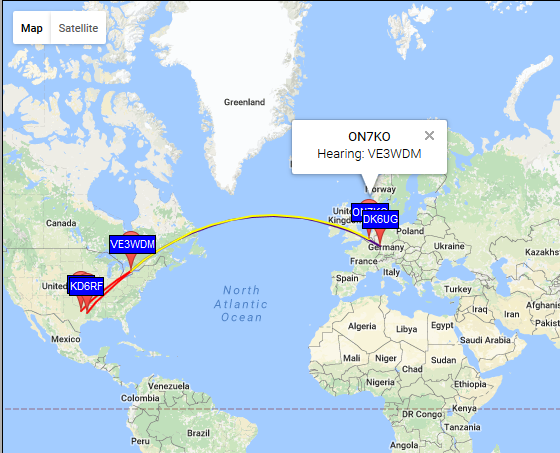

The WSPRnet map reproduced below shows the extent of reception during my own overnight WSPR 630m beaconing session. Missing are many of the normal spots from the eastern provinces and east coast states, indicating the attenuation on this path. Everything else seems enhanced.

courtesy: WSPRnet

The path to down under, in-spite of my obstruction in that direction, perked-up as well, with VK4YB decoded here 19 times as well as VK3ELV's 150W and inverted-L near Wangaratta, Victoria.


               13:56      VK4YB      0.4756      -28   QG62ku   11820
               13:50      VK4YB      0.4756      -28   QG62ku   11820
               13:44      VK4YB      0.4756      -24   QG62ku   11820
               13:40      VK4YB      0.4756      -24   QG62ku   11820
               13:30      VK4YB      0.4756      -27   QG62ku   11820
               13:24      VK4YB      0.4756      -20   QG62ku   11820
               13:18      VK4YB      0.4756      -24   QG62ku   11820
               13:12      VK4YB      0.4756      -22   QG62ku   11820
               12:42      VK4YB      0.4756      -26   QG62ku   11820
               12:14      VK4YB      0.4756      -20   QG62ku   11820
               12:02      VK4YB      0.4756      -23   QG62ku   11820
               11:58      VK4YB      0.4756      -25   QG62ku   11820
               11:52      VK4YB      0.4756      -25   QG62ku   11820
               11:40      VK4YB      0.4756      -29   QG62ku   11820
               11:32      VK4YB      0.4756      -26   QG62ku   11820
               11:24      VK4YB      0.4756      -25   QG62ku   11820
               11:12      VK4YB      0.4756      -22   QG62ku   11820
               10:56      VK4YB      0.4756      -26   QG62ku   11820
               10:54      VK4YB      0.4756      -25   QG62ku   11820


Merv, WH2XCR in Hawaii, was spotted here 56 times, with numerous transmissions at 'easy CW' levels. He even spotted me twice, with his 80m dipole, presently laying on the ground!

It was also encouraging to see 21 spots from Eden, ZF1EJ in the Cayman Islands, with several at CW levels.

The following stations all uploaded spots of my overnight WSPR signals, as nightly activity continues to grow with the DX season now at the doorstep. Given equal ERP, most of these stations would be workable on either CW or on JT9.

              WH2XGP      DN07dg      319      122
               WG2XSV      CN85sr      353      169
               WI2XJQ        CN87ts      138      150
               NO1D         DM34tn      1825      147
               N3IZN/RX  DM13ji      1796      161
               WW6D      CM88pl      1155      177
               VE7CNF      CN89ng      55      33
               VA7MM      CN89og      59      38
               WE2XPQ      BP51ip      2151      321
               W5EMC      EM10cl      2963      124
               K5ACL      EM10bd      2987      125
               WG2XXM    EM15lj      2610      115
               ZF1EJ/1       EK99ig      4977      116
               KE7LGT      DN26xm      739      107
               W3PM       EM64or      3365      104
               ZF1EJ        EK99ig      4977      116
               VE7KPB      DN29cm      550      79
               KU7Z        DN41af      1227      129
               WH2XCR      BL11je      4295      236
               KB0BRY      EN17nc      1966      86
               WD2XSH/20 CN83      598      178
               WG2XIQ      EM12      2841      120
               WE4X      EM65ut      3326      102
               VE7BDQ      CN89la      26      44
               KB7W      CN93jx      565      163
               W6LEO      DN17oq      498      103
               WH2XAR      DM33vp      1924      147

As interest in 630m continues to expand, many U.S. amateurs are already building their stations so they will be ready to go when the word finally comes. I suspect that 630m may soon sound like a small slice of 40m on a busy night ... will you be ready?

As mentioned in my last blog, using a transverter to drive a separate amplifier requires some method of switching system in order to automatically handle the antenna, transverter and amplifier input / output ports. To run a relay switching system in the WSPR or JT-9 modes requires that the switching be controlled by the transceiver's PTT line which in turn is controlled by the WSPR software. Using VOX keying is out of the question as it causes the relays to be 'hot-switched' and with higher power will eventually lead to their demise.

For many years I managed PTT line control via my laptop's comm port but these are now things of the past, requiring switching to be done via the USB port. There are many commercial products available that will do this nicely as well as handle the audio feed from radio to computer and vice-versa, but I found that my homebrew version worked just fine. Making it work via the USB port however required a serial-to-usb converter. This was described here, in an earlier blog and for the few dollars invested has proven to be a very reliable interface.

The schematic of the switching control unit is shown below. It uses two inexpensive OMRON G2RL-1-E DC12 relays purchased from Digikey. Although not coaxial, the $3.09 (U.S.) relay will easily handle a kilowatt as decribed by W6PQL. These relays have large contacts, rated at 16A. I added a few extra components that absorb any relay switching transients as well as remove any RF on the control lines.

Relay Control Unit

Keying Line Damper: courtesy: KK5DR

The relays are shown in the 'receive' (none keyed) mode. In this position, the antenna is routed directly into the transverter's output connector. In 'transmit' mode, the transceiver's PTT line is grounded, switching the relays. The antenna moves over to the amplifier's output and the transverter's output gets connected to the amplifier's input.

I must say a few words about Digikey's service. I really am amazed at what a superb job they do in supplying hobbyists with small orders. So many companies nowadays cannot be bothered with such things or demand a large minimum order for the privilege of handling your purchase! From what I can tell, Digikey bends over backwards to help out the little guy, with no minimums as well as dirt-cheap, fast shipping. Living in Canada, I'm used to U.S. dealers making me jump hoops to place an order, only to find out that the cost of shipping is often prohibitively high or they ship only via UPS which I will not accept.

I placed a small two-page order with Digikey via their excellent web site on a Tuesday afternoon. On Friday morning, there was a knock at my door at 0800 hours ... it was a courier service delivering my parts! To put this in context, I live on a small island in the middle of Georgia Strait, accessible only by air or by ferry. To me this service is incredible and the cost of postage was only $6.00 (U.S.). I really have no idea how they do this but they obviously have put into operation a very efficient system ... hats off to them and their skilled management that has figured this all out. A few years ago I sent in orders to both Digikey and to Mouser, each within an hour of each other. Like my recent order, the Digikey parts arrived in just a few days while the Mouser parts took over three weeks ... perhaps things have changed since then but this is the reason I use and recommend Digikey whenever I can.

Once I had the needed parts, I quickly built a PCB for the switcher and put it together in a day so that I might begin 630m skeds with VK4YB as soon as possible.


If you would like a full-size layout suitable for the iron-on toner PCB construction method, I'll be happy to send you one via email.





The first test run with VK4YB at 0300 local time proved problematic. When I fired up at full ERP, I immediately saw some output instability on the scopematch screen. Before I could shutdown however, I had blown a FET in the amplifier, shutting me down and sending me back to bed to worry about the situation.

Having had time to think about the problem made me suspect something in the new relay changeover unit since that was the only new variable in the system. I suspected that perhaps the relays were not fully seated before being hit with full RF output and the possible hot-switching had caused enough short-lived SWR to take out the very reactance-sensitive FET final. In many years of operation with the amplifier, this was the first blown FET I have had. When I built it, I made sure that the FETS would be easily accessible (see below) should such an occasion arise ... unlike my initial transmitter, where replacing a FET was a nightmare.

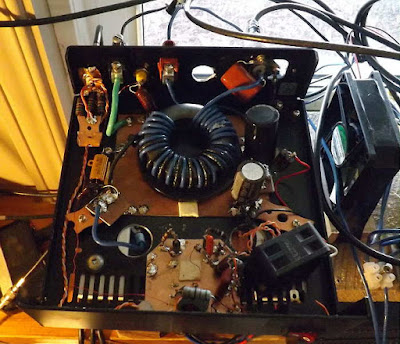

Fortunately, when FETs go south on a push-pull amplifier, only one FET will blow ... whichever one was conducting at the time, thus preserving the remaining FET. I flipped a coin and unsoldered the source lead of the left hand FET and measured it. Sure enough it had a drain-to-source short. My day was off to a better start. Once replaced, I set out to determine what had caused it to blow in the middle of the night.

Since I didn't want to blow another FET, I could only 'key-up' in very short bursts and see if the instability was still present. I put the amplifier on a dummy load and everything seemed normal but when put onto the antenna, it reappeared. Suspecting an arc in the loading coil, I checked it carefully. I indeed did find a charred blackened section near the top high-voltage end of the coil but that could have been a short-lived event from the past as I'm sure small crawly things often meet their demise between the windings without causing any problems other than a quick puff of smoke or a short-lived arc to the PVC coil form.

After cleaning the coil and removing any carbon paths as well as giving it a few coats of varnish, I was hopeful that the problem would be gone ... but no, the scopematch indicated it was still misbehaving. As well, I could hear a weak but audible high-pitched oscillation coming from somewhere in the amplifier's circuitry. I suspected that it came from one of the output transformers but with the fan noise it was impossible to accurately locate the source of the rogue 'squeal' when briefly keying-up.

Fast forward several hours of pulling out what was left of my hair and I was no further ahead. The amp continued to work fine at high power, via the new relay system, into my dummy load but into the perfectly matched antenna, the problem remained. It was at this point that I decided to look at the input signal from the doubler, a nice squarewave at 950kHz for the amp's divide-by-two input chip. The scope instantly indicated a dual squarewave with more than one frequency present!

Recently built W1VD 'Frequency Doubler'

I control the input to the doubler by setting the transverter's output to 1W but at 0300 that morning had set it to 1/2 watt, noting that the amplifier seemed to be happy at that level. I then increased the drive from 1/2 watt to 1 watt while watching the 950kHz signal and immediately saw it morph into a wonderfully clean squarewave once again! Sure enough, the amplifier returned to complete stability into the antenna.

It looked like the doubler was not getting enough 475kHz input to actually double properly and its output was a mixture of 950 and (mostly) 475kHz. The amp's divide-by-two input would then try and turn this into a mixture of 475 and (mostly) 237 kHz which the highly-tuned antenna system would balk at, producing the unwanted FET-killing reactance. Being passive and none-reactive, the dummy load was quite happy to take the signal all day long if I let it.

With the mystery solved, full ERP beaconing and scheduling with VK4YB has begun once again, but the TransPacific path has been stingy for the past few mornings ... hopefully this will change now that I'm ready again, barring any further complications.

This past week I was eventually able to mate my W1VD frequency doubler with my 630m FET amplifier and run some higher powered tests on 630m WSPR and JT9 modes.


Up until this time, I have been limited to about 1/2 W EIRP but using the amplifier allows me to get to the 5W EIRP limit. I have been using the VK4YB transverter's 475kHz reduced output of 1W and driving the doubler previously built as part of a transverter project. The doubler produces a nice 950kHz squarewave to drive my amplifier's divide-by-two flip-flop input circuit which in turn produces the dual antiphase outputs needed to drive the push-pull switching FETs in the final amplifier. Being a linear transverter, when used alone at 70W, it will run any mode that the IC756 ProIII will produce such as SSB, WSPR etc, but my switching FET amplifier is class-D, non-linear, which limits it to non-linear modes such as CW, WSPR and JT-9, the most popular modes on 630m.

A few days ago, VK4YB and I ran our first 630m sked on JT9 as conditions looked favorable. Unfortunately, this was before I had my transverter / antenna switching system completed so I was limited to the barefoot transverter at ~ 1/2W EIRP. Using a transverter to drive an external amplifier means the antenna must be switched between the amplifier output and the transverter input in addition to switching the transverter's output between the antenna and the amplifiers input. I'll post details of my switching system, and inexpensive but power-capable relays, in an upcoming blog as there are probably many 630m operators planning on doing something similar.

Thanks to Roger's huge antenna, his 90W signal was making it through well enough on this end but he was not able to decode anything from me.



1109 -26 0.3 1098 @ VE7SL VK4YB QG62
1111 -28 0.3 1098 @ VE7SL VK4YB QG62
1147 -24 0.1 1100 @ VE7SL VK4YB QG62
1149 -27 0.1 1100 @ VE7SL VK4YB QG62
1153 -27 0.1 1100 @ VE7SL VK4YB QG62
1159 -26 0.1 1100 @ VE7SL VK4YB QG62
1209 -26 0.0 1100 @ VE7SL VK4YB QG62
1225 -25 0.1 1100 @ VE7SL VK4YB QG62
1227 -26 -0.0 1100 @ VE7SL VK4YB QG62
1229 -24 0.1 1100 @ VE7SL VK4YB QG62
1239 -23 0.1 1100 @ VE7SL VK4YB QG62
1247 -26 0.0 1100 @ VE7SL VK4YB QG62
1249 -26 0.1 1100 @ VE7SL VK4YB QG62
1253 -23 0.1 1100 @ VE7SL VK4YB QG62
1255 -28 0.1 1100 @ VE7SL VK4YB QG62
1257 -26 0.1 1100 @ VE7SL VK4YB QG62
1303 -27 0.2 1100 @ VE7SL VK4YB QG62
1305 -23 -0.1 1100 @ VE7SL VK4YB QG62
1307 -25 -0.1 1100 @ VE7SL VK4YB QG62
1309 -23 -0.1 1100 @ VE7SL VK4YB QG62
1313 -25 0.0 1100 @ VE7SL VK4YB QG62
1319 -27 0.0 1100 @ VE7SL VK4YB QG62
1323 -22 0.1 1100 @ VE7SL VK4YB QG62
1325 -25 -0.1 1100 @ VE7SL VK4YB QG62
1327 -24 0.0 1100 @ VE7SL VK4YB QG62
1329 -25 0.0 1100 @ VE7SL VK4YB QG62

My location on the 'wrong' side of Mayne Island requires me to fire directly into a very nearby 600' hilltop, directly in Roger's path.

I'm at the base of the hill on the far right. The large mountains are on Vancouver Island and then open Pacfic.

Later WSPR beaconing, using the new doubler and full power, tends to indicate that a two-way digital QSO should be possible with good conditions. Roger is now able to hear my signal at levels good enough for the JT-9 WSPR QSO mode.

VE7SL	0.475633	-25		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475633	-26		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475632	-23		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475632	-26		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475632	-30		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475634	-28		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475634	-30		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475634	-30		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475633	-28		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475633	-29		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475633	-27		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475632	-28		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475630	-28		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475629	-29		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475629	-31		CN88iu	5	VK4YB	QG62ku	11820
VE7SL	0.475629	-30		CN88iu	5	VK4YB	QG62ku	11820

With the antenna / transverter / amplifier switching unit complete, Roger and I will continue to watch band conditions favorable to the Trans-Pacific path and hopefully exchange signals sometime this fall before the path disappears until next spring. For Roger, near Brisbane, the path peaks for him in the late evening while for me, it means crawling out of bed at 0330 local time to check the prop, hoping to find good signals from down under ... working VK on 630m would be well worth losing a few hours of nightly sleep!

As our sunsets start to come earlier and dawn arrives later and later, the sun's accelerated southerly excursion has brought sudden changes to 630m propagation.





This past weekend's CLE activity saw universally poor propagation as well as weather related QRN from lightning ... but as usual at this time of the year, things can change rapidly. Wednesday's overnight map of my own 630m WSPR activity illustrates why September propagation on LF and MF can often be spectacular and this is with just 65 watts total power output:

courtesy: http://wsprnet.org/drupal/

Among other things, the map indicates the growing interest among U.S. amateurs in the 630m band. Hopefully they won't have to wait too much longer, although I seem to be saying this more often than I would like to. It is of interest to note that even though these were WSPR reports, signal levels at most reporting stations were either into the 'audible CW' levels or at 'JT9 workable' levels ... all stations should be workable once the 630m ham band becomes a reality for all North Americans. Midwinter conditions over the next several years should see an abundance of transcontinental contacts on both CW and on JT9!

The east-west path is the bread and butter direction for interesting possibilities, when it comes to those of us in VE7 land. Normally it only really sets in when geomagnetic conditions are quiet but, as a result of coronal hole streaming, this week's geomagnetic field has been anything but quiet. As John Langridge, KB5NJD / WG2XIQ reported today in his invaluable '630m daily reports':

The geomagnetic field was extremely active, with many reporting periods at storm levels. The Bz is pointing to the South and solar wind velocities are very high, peaking at 700 km/s. This event is significant and I am just glad to see that it is helping and not hurting propagation. When will the bottom drop out? Clearly there is a lot going on here that we do not understand.

With stormy conditions continuing throughout the week, Friday's path to down-under enjoyed some enhancement as well, not unusual when the east-west path is disturbed. VK4YB's 90 watt signal was widely heard by several VE7's (VE7CNF, VA7MM and VE7BDQ) in the predawn hour, as Roger's signal peaked up briefly for several WSPR decodes.

courtesy: http://wsprnet.org/drupal/

As the coronal hole streaming continues, this morning's path to VK seemed even better along with a new antenna at VK4YB favoring the northwest:

12:24      VK4YB      0.475622      -21   VE7BDQ    11844 km
12:12      VK4YB      0.475621      -22   VE7BDQ    11844 km
12:08      VK4YB      0.475622      -17   VE7BDQ    11844 km
11:04      VK4YB      0.475622      -24   VE7BDQ    11844 km
11:02      VK4YB      0.475623      -22   VE7BDQ    11844 km
10:54      VK4YB      0.475623      -22   VE7BDQ    11844 km

12:28      VK4YB      0.475626      -21    VE7SL       11820 km
12:24      VK4YB      0.475625      -23    VE7SL       11820 km
11:54      VK4YB      0.475623      -25    VE7SL       11820 km
11:04      VK4YB      0.475623      -23    VE7SL       11820 km
11:02      VK4YB      0.475625      -26    VE7SL       11820 km
10:54      VK4YB      0.475626      -21    VE7SL       11820 km

11:22      VK4YB      0.475614      -28    VA7MM      11872 km
11:04      VK4YB      0.475614      -28    VA7MM      11872 km
11:02      VK4YB      0.475615      -33    VA7MM      11872 km
10:54      VK4YB      0.475615      -26    VA7MM      11872 km

I should mention that the other VE7 stations are all operating from noisy suburbs near Vancouver ... clearly fine examples of what can be done on 630m under less than ideal operating conditions and by paying close attention to system optimization. Please don't let living in the city stop you from enjoying the mysteries and challenges that our latest ham band has to offer ... as mentioned earlier, there is still much to be learned about using this band at amateur radio power levels and small backyard antennas. How exciting is that!

The other evening I was having a cup of tea and checking out my new QST that just arrived and found myself very interested in a piece written by Steve Ford in his column Eclectic Technology. The title caught my eye "When a signal is barely a WSPR" Steve looked at how the Raspberry Pi could be used for WSPR transmissions. Seeing I have the Raspberry Pi3 this sparked my interest. It was pointed out that all you need to turn your Pi into a WSPR transmitter is a board from TAPR called QRPi.  The board is offered at a very reasonable price of 29.00 U.S and it's set for 20m at 100mW. Before I got to excited about this little project  I wanted to see if using 100mW's would net me any results. I have seen other hams in the past net great results with far less than 100mW's and WSPR is known for it's great decode at very low power........BUT.......I do have a challenging setup here. On Friday late afternoon I gave WSPR a go on 20m at 100mW and was I impressed with the results. I was received by DK6UG for a distance of 39383 miles per watt and also ON7KO for a distance of 37285 miles per watt. I was amazed that my setup was able to produce those results! Now another question I wanted to consider is at 100mW how much of that actual power makes it to my antenna? To do this I referred to a coax calculator I punched in the type of coax (RG8X) the SWR (1.4:1) the length (30 feet)  the frequency (14) and finally the power (100mW) The calculated amount I was informed was 92mW of raw power! So this bumped my miles per watt to 42810 for DK6UG and 4053 for ON7KO! It's not timo look more into the TAPR project!!

2.5mH 136kHz loading coil at WH2XND

For the past few weeks, Ron, NI7J in Phoenix, has been activating his experimental station, WH2XND, in the LF band ... on 75.550kHz (WSPR), where he is licenced to operate.

Last night I decided to put my nightly 630m WSPR beacon on hold and have a listen for Ron's signal using my 10' x 20' loop.


Ron's main experimental operating has been on 630m and 2200m WSPR mode but his recent activity on 75kHz has sparked a lot of interest among dedicated summertime listeners. WH2XND is licenced for 10W ERP on 75kHz, not a number that's easy to muster considering the poor antenna efficiency produced by typical amateur installations ... however, judging from Ron's coils, his installation looks far from 'typical'!

Ron's signal is being well heard, even up in Alaska, in spite of the noisy summer conditions and it will be interesting to see how well it propagates once we move into the fall and quieter winter nights.

The big loop seemed to do well with Ron's signal last night, resulting in 55 decodes starting at around 2300 local time and continuing to sunrise.

Timestamp                    Call                   SNR         Grid

2016-07-12 12:28      WH2XND            -28            DM33xt
2016-07-12 12:20      WH2XND            -27            DM33xt
2016-07-12 12:16      WH2XND            -25            DM33xt
2016-07-12 12:12      WH2XND            -28            DM33xt
2016-07-12 12:08      WH2XND            -27            DM33xt
2016-07-12 12:04      WH2XND            -28            DM33xt
2016-07-12 12:00      WH2XND            -29            DM33xt
2016-07-12 11:40      WH2XND            -25            DM33xt
2016-07-12 11:36      WH2XND            -20            DM33xt
2016-07-12 11:32      WH2XND            -18            DM33xt
2016-07-12 11:28      WH2XND            -18            DM33xt
2016-07-12 11:24      WH2XND            -19            DM33xt
2016-07-12 11:20      WH2XND            -19            DM33xt
2016-07-12 11:16      WH2XND            -20            DM33xt
2016-07-12 11:12      WH2XND            -20            DM33xt
2016-07-12 11:08      WH2XND            -19            DM33xt
2016-07-12 11:04      WH2XND            -19            DM33xt
2016-07-12 11:00      WH2XND            -20            DM33xt
2016-07-12 10:56      WH2XND            -20            DM33xt
2016-07-12 10:52      WH2XND            -21            DM33xt
2016-07-12 10:48      WH2XND            -22            DM33xt
2016-07-12 10:44      WH2XND            -23            DM33xt
2016-07-12 10:40      WH2XND            -24            DM33xt
2016-07-12 10:36      WH2XND            -25            DM33xt
2016-07-12 10:32      WH2XND            -26            DM33xt
2016-07-12 10:28      WH2XND            -24            DM33xt
2016-07-12 10:24      WH2XND            -24            DM33xt
2016-07-12 10:20      WH2XND            -25            DM33xt
2016-07-12 10:16      WH2XND            -24            DM33xt
2016-07-12 10:12      WH2XND            -23            DM33xt
2016-07-12 10:08      WH2XND            -26            DM33xt
2016-07-12 10:04      WH2XND            -25            DM33xt
2016-07-12 10:00      WH2XND            -26            DM33xt
2016-07-12 09:56      WH2XND            -26            DM33xt
2016-07-12 09:52      WH2XND            -27            DM33xt
2016-07-12 09:40      WH2XND            -26            DM33xt
2016-07-12 09:36      WH2XND            -25            DM33xt
2016-07-12 09:32      WH2XND            -24            DM33xt
2016-07-12 09:28      WH2XND            -26            DM33xt
2016-07-12 09:24      WH2XND            -26            DM33xt
2016-07-12 09:20      WH2XND            -28            DM33xt
2016-07-12 09:16      WH2XND            -27            DM33xt
2016-07-12 09:08      WH2XND            -27            DM33xt
2016-07-12 09:00      WH2XND            -27            DM33xt
2016-07-12 08:56      WH2XND            -28            DM33xt
2016-07-12 08:52      WH2XND            -29            DM33xt
2016-07-12 08:44      WH2XND            -29            DM33xt
2016-07-12 08:40      WH2XND            -27            DM33xt
2016-07-12 08:36      WH2XND            -28            DM33xt
2016-07-12 06:44      WH2XND            -32            DM33xt
2016-07-12 06:32      WH2XND            -31            DM33xt
2016-07-12 06:28      WH2XND            -31            DM33xt
2016-07-12 06:24      WH2XND            -30            DM33xt
2016-07-12 06:20      WH2XND            -30            DM33xt
2016-07-12 06:12      WH2XND            -29            DM33xt

His signal peaked here (shown in blue above) about an hour before sunrise, with almost a dozen decodes in the -18 to -20 region ... not far from audible CW levels which will probably be seen in winter. It was interesting to note as well, that in several transmitting sequences, Ron's signal was stronger in Alaska than it was here and in Washington state ... just the opposite of what one might expect.

In the past, I have had good results on 75kHz with Dex (W4DEX), when listening for his QRSS CW signal, using my normal inverted -L with a 2.5mH RFC inserted in series with the antenna's normal loading coil.

'XRS/5' on 75kHz from W4DEX in NC

If you can give a listen for Ron's WSPR signal and send him a report ... or better yet, upload your spots to the WSPRnet site, he would be very appreciative. For listening, set your receive frequency to .074kHz in the USB mode. The software will take care of the rest. You can upload 'LF' spots with your software by setting the '.074' receive frequency in the program's normal frequency or band window.

24 Hour 'JT' 6m Activity

For the past few weeks I've been able to transmit in the WSPR mode on 630m for the first time. For a long while I've tried to avoid it since the mode does not allow for two-way QSO's to be made. For that, excluding CW, one of the other weak-signal digital-modes such as JT-9 would need to be used. I've been using a new transverter sent to me for Beta testing ... hopefully I'll be able to report more if the unit receives final approval for production.

The transverter develops just over 70 watts output when run on 13V and so far, has been able to take all of the nightly punishment I've been able to throw at it with flying colors. Here is a WSPRnet screen shot taken from a typical night of my WSPR beaconing on 630m:

courtesy: KB5NJD's 630m Info

I was also able to have my first JT-9 mode QSO this week, with Toby, VE7CNF. This mode is the weak-signal WSPR QSO mode, tailored for LF/MF work and allows for calls, signal reports and confirmations (R's) to be exchanged ... the minimum requirements needed to claim a contact. Although additional information can be exchanged, its 13-letter message buffer does not exactly promote ragchew style conversations and some creativity is required to exchange more than the basics.

With many of our newer 'digital-savy' amateurs not necessarily being proficient in CW, I suspect that JT-9 may well evolve to become the go-to weak signal communication mode on 630m, much as it has in Europe. In fact, popularity of this mode in Europe has already spawned a few JT-9 contest weekends on 630m, with high activity levels being reported. I'm really looking forward to a 630m JT-9 QSO party in North America, once the band becomes a reality in the U.S.A.

JT-9 is capable of decoding signals reliably down to -24db SNR and boasts a 50% reliability of decoding at -26db SNR. Audible CW drops out at around -16 to -18db SNR, so communicating with JT-9 is the equivalent of going from 100 watts to around 800 watts ... a significant improvement and very helpful on 630m! Like WSPR, JT-9 will work with non-linear transverters and amplifiers such as the commonly-used and simple to build switching MOSFET Class D/E styles.

There also appears to be a fast-growing use of JT-65A on the 6m band this summer, with numerous 'CW forever' operators finding the mode's ability to dig up to 10db deeper into the noise paying off with surprising results. Some western North American operators have noticed that European JT-65A signal levels indicate that they should be in the CW-copiable range yet no CW activity is heard, for which there seems to be no ready explanation. Perhaps more will be learned this summer as the use of this mode continues to expand.

As one of the 'CW forever' proponents willing to try something different, I also have been listening for and working stations on 6m over the past few days on JT-65A. With the IC-756ProIII throttled back to 25 watts, I've found it fairly easy to make contacts when the band is open but have yet to hear or work anything unusual.

I'd love to hear your own comments on the use of JT-9 or JT-65A, particularly on 630m or on 6m ... maybe you can pass along some tips for those of us that are new to the mode on this band.

I may have to reconsider this 'CW forever' thing!
