Posts Tagged ‘Iler 40’

Iler progress

The Iler 40 QRP SSB transceiver kit proceeds apace – a snail’s pace. I wasted a lot of time correcting stupid errors – like soldering a resistor in the wrong place and putting a diode in back to front. I mean, I know diodes have to go the right way round and the banded end is clearly enough marked on the board. Removing parts from boards with plated through holes is a nightmare. Why didn’t I check it?

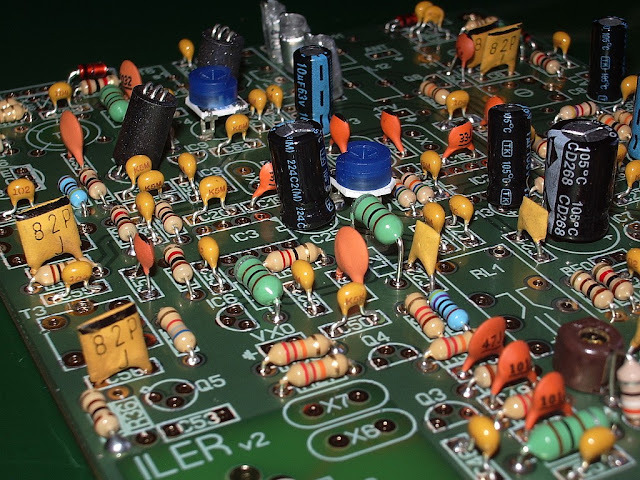

Part completed Iler 40 board

Another reason for the slow progress is that building circuits does my back in. It’s the bending forward to see the parts under the magnifying lens that does it. Eventually there is a twinge from my lower back that says: time to take a break. So I’ll put everything to one side and do something else for a bit.

Iler 40 arrives!

It took its time getting here, but the Iler 40 QRP SSB transceiver kit from Spain has finally arrived! Opening the package confirmed my expectations that this is a very high quality kit indeed.

Iler 40 kit contents

The printed circuit board is top quality and screen printed with plated through holes. Quite a contrast to some kits of UK origin that look as if the board has been etched and drilled in someone’s garage.

The components of each type are individually bagged. The CD containing PDF manuals in both English and Spanish has a custom colour printed label. A quick glance inside showed that the assembly instructions have been professionally produced and are of the a similar standard as the manuals for kits by Heathkit and Elecraft – if not better. Javier has even included data sheets for all the active components making this the most fully documented kit I’ve ever encountered. I’m going to enjoy building this.

It’s going to be a while before I can get started, though. There are some major home improvements going on at the moment chez G4ILO and with all the hammering and sawing I’ll have to wait for a peaceful and relaxed atmosphere. I also need to print off a copy of the 39-page assembly manual so I can cross steps off as I go along – and as you may have read our printer doesn’t want to play ball.

A 40m transceiver kit

It has been a while since my soldering iron has been warmed up and I have been feeling the urge to build something. The challenge of building something from scratch has usually proved too much, so I have decided to build a kit. I’ve read a lot of good things about the “Iler 40” and its 20m brother so I decided to get one.

Iler 40 transceiver (EA9GCY photo)

I thought that this kit was sold on Ebay but a search for “Iler 20” came up blank. A more generic search produced some interesting hits including this 40m transceiver kit from a UK seller. This kit is quite a bit cheaper than the Iler kits but without any reviews it is a bit of an unknown quantity. I eventually found that the Iler kits can be bought from the maker’s own site. The excellent reviews plus a higher output (4w vs 1w) were the decider. I was a bit unsure of which version to go for but I eventually plumped for the 40m version. More to follow once it gets here.
