Four State QRP Group hits a home run!

This sounds like a great kit at a fantastic price, for what you’ll be getting!

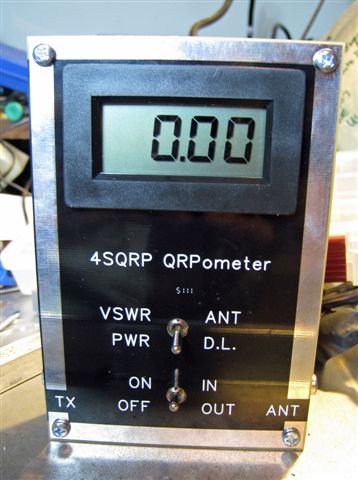

Dubbed the QRPometer during development, this useful accessory is a highly accurate and easy to use power and swr indicating meter. Unusual in any pwer meter, the range of accurate power measurement extends down to a low 100 milliwatts. It has a large digital display and boasts an accuracy level that few, if any, similar meters on the market can match. A unique design feature is that 2 circuit boards are included in the kit, they form the front and back of the enclosure. The boards are shiny black so there is no need to buy, build, or paint an enclosure.

This kit was conceived to fill a need within the hobby for an inexpensive, highly accurate VSWR and RF power meter for QRP power levels. The QRPometer uses simple analog signal-processing circuitry to provide a set of essential measurement features not previously available in a single unit. High quality, double sided, printed circuit board construction is used, with solder mask and silk screened component reference designators. All components are through-hole for easy assembly. NO toroids are required. All controls and jacks are PCB mounted, and a single, four conductor ribbon cable is the only wiring necessary. The QRPometer can be constructed by beginners as well as experienced builders. Construction time is approximately 3 hours, depending on experience level. The only equipment required for calibration of the QRPometer is a digital voltmeter, and a QRP transmitter.

First time builders please note: This kit is not difficult to build. All parts are thru hole parts, there are NO SMT parts. The parts are wide spaced on the board making installation easy, and all connectors are board mounted which eliminates point to point wiring. Also note that there are No TOROIDS to wind – none.

Specifications and Design Features
Power Range: 100 mW to 10 Watts
Accuracy: Power, 2% Typical
VSWR, 5% Typical
Large Digital Display The digits are .52″ in height.
Sensitivity: Direct readout on 3 1/2 digit LCD display. Minimum resolution 10 mW.
Enclosure: Silk Screened PC boards create the enclosure, no need to purchase one.
No Toroids: There are no toroids in this kit.

The price?  Only $50.00 (US).  Wow!

For all the details; and to order ………  http://www.wa0itp.com/qrpom.html

Please note that I am not a member of the 4 State QRP Group and have no “interest” in this kit, other than seeing great stuff get into the hands of my fellow QRPers!

72 de Larry W2LJ

Larry Makoski, W2LJ, is a regular contributor to AmateurRadio.com and writes from New Jersey, USA. Contact him at [email protected].

One Response to “Four State QRP Group hits a home run!”

  • Michael N5TGL:

    Larry,

    Thanks for the info on the meter! Exactly what I’ve been looking for, and I get to build a kit too. Too bad it’s sold out already, have to wait for the next release.

    73 Michael
