Great Cheap Toy for those of us over 40!

OK.. I’ve been debating about getting one of these for over a year.

USB "2.0 Megapixel" Web-cam based Microscope


I finally decided to “risk it”…
At about $30 from China on e-bay (look for “joinnew”) .. they are cheap.. but are they good enough for electronics work?

Lets see. Most claim to be 2.0 MP but like mine the are really noisy above 640×480 resolution because the sensors really are 640×480 webcam sensors. They are backlit with 8 white “high brightness” LEDs.

There are issues with the setup, and are not good enough for a true scientific instrument. But a true scientific instrument would be too much for surface mount work, anyway. So one of the “20x-200x” variants would be better for electronics than a “50x-500x” unit, anyway.

Here are the results:

Highest magnification of a offset print catalog that came in the mail:

Printing press color image at max usable resolution

BATC Digilite board– various parts shot at differing magnifications. The IC is a TSSOP, so it’s pretty small. This shows that I about have hand SMT soldering down.. this is what it should look like at magnification, BTW. (See My other blog for some tips IMHO on how to SMT solder!)

TSSOP I/Q Modulator at "medium" magnification

Chip Tantalum and leads from TSSOP at "low" magnification

Leads on TSSOP at medium magnificaion, but higher magnification than IC package picture

As you can see, it’s quite adequate for board inspection. As the magnification setting increases, the unit needs to be closer to the board. At low (20x or less) magnification the unit can be a couple of inches away from the board. It *may* be possible to actually mount and solder the part on the board when using the USB Microscope at a low magnification setting.. but I’ll have to experiment.

The units come with a poor quality stand, but I plan on getting a stand off a spring loaded arm lamp (I saw a neat one on a small little lamp at IKEA the last time I was in Chicago.. maybe if I ever get back to visit mom).. I suspect if a stand could be fabricated to keep the beast out of the way of the soldering iron, it could actually be used when soldering.. especially with the protective lens cap it comes with on. I’ll figure it out later and post somewhere.

For $30, it’s adequate for electronics use and I actually recommend it as a tool for construction. The only “rip-off” part is that it’s not really usable above 640×480– the higher “res” modes overtax the capabilities of the sensor and are very noisy. (Dont believe the 1.3 or 2.0 MP claims!) Despite this, as you can tell it’s about right for circuit board work.

I used to laugh when someone told me that “right at age 40” you get presbyopia — but I literally woke up one morning 6 months after my 40th birthday, looked down at my (out of focus through my glasses) watch and thought… “oh crap!”…It literally happened to me overnight!… Now I have to take off my glasses to do close in work. I suspect as I further deteriorate with age that it will even get worse.

This seems like an inexpensive tool to cope.

Recommended for the price. Shipping was only one week from China during the “holiday rush” time. Great deal.

The Zen of Arduino

Well, I shoulda gotten out into the detached garage this weekend and worked DX.. but the weather was nice on Thanksgiving and the day after (when I had to do family stuff thankfully) and freaking cold and windy the rest. (I can heat it but it takes some planning…)

So instead, I decided to catch up on building/hacking projects from the past and ones on a weird tangent to my current construction project the BATC DigiLite.

The past project is rebuilding my ORIGINAL 1998 Dallas Semiconductor “iButton” WS-1 One Wire weather station w/humidity and the tipping rain gauge (it’s been ten years since I had it up and running last– it took me several hours to find it!). I plan on stripping all of the one-wire garbage (sorry, it never worked reliably with any cable length at all) except for the temp sensors out of both units and embedding an AVR and running RS-485 to the units.. and connecting to an Ethernet connected Arduino to report to APRS and/or Weather Underground. My kids are interested and I’m also adding a Real Time Clock and a Barometric Pressure sensor (to the inside unit since my house isn’t pressurized) and having a fairly complete station. No PC will be required and the little 8-bit processors are misers when it comes to power usage!

I want to get my older boys interested in the systems engineering aspect and the coding and the weather station is starting to peak there interest a bit. Keeping my fingers crossed!

This is actually connected to the BATC project in that I want to use the Arduino development system and the extensive library of code instead of taking time I don’t have and writing everything from scratch on a PIC or AVR (non-Arduino). I discovered that except for the bootloader and the sometimes bloated code in some of the libraries (most are very good) that it is not that much less efficient than straight-C on the AVR’s. (The Arduino environment conceals a full open source GCC C++ complier and yup, you can write in C and C++.. you actually are even under the “sketch” environment– but they conceal that well to beginners.) Yes they are small, and slow.. but at $2.50-$6 a pop for DIP IC’s that you can hack together in a hurry.

Here is a picture of some of the AVR based toys I’ve bought and put together over the years. The “real” Arduino shields are recent.. for prototyping your own stuff they suck (since one header isn’t on 0.1″ centers.. DUH!).. but since they are a standard certain modules are cheap (at least the non-Italian “bad labor condition” clones from China) and readily available. You can put together relatively inexpensively and quickly since most of the core code can be borrowed from libraries.

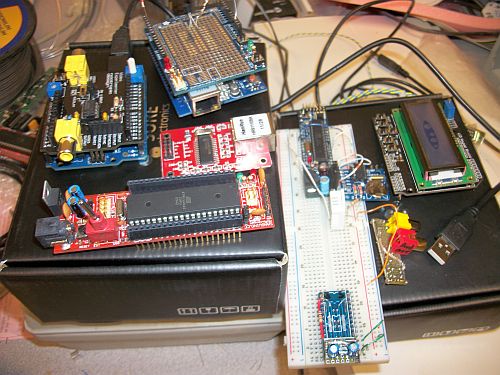

Some AVR based "Arduino" toys-- Arduino 2009 clone with a Nootropic Designs Video Experimenter's Shield, a Sanguino board, an Ethernet module, a Adafruit Proto shield on top of a Clone W5100 Ethernet/SD card shield, a "Boarduino" board with a humidity/temp sensor DHT-22 on it, and a DS1307 Adafruit RTC board attached.. and a homemade video/audio out and a e-bay "DFRobot" LCD Shield 16x2 -- "Unknown" proto card at bottom will be a 5V to 3.3V bidirectional 8-bit I/O board with a 3.3V regulator on it for prototyping.

In relearning the coding, I wrote a lot of odd stuff. Here is an example of a ATMega644 (in an Sanguino PCB) doing a bunch of stuff.. talking to a LCD (via the library in 4-bit mode) and shifting data to a 74HC595 driving the LED’s in a row.. reading from a Dallas (yes, one-wire) Temperature Sensor (those are great units if not parasite powered!) with two debounced switches… doing math for the PLL synth (the numbers in the left bottom corner).. Here is a video:

Sanguino board doing all sorts of stuff

Anyway.. I am going to use the ShiftOut function on the Arduino to program the "Ultram Technologies" PLL board (That I bought preset to 1255 MHz) for the DigiLite LO on the DVB-S modulator. I was going to use that Arduino 2009 / "DFRobot" (clone) LCD Shield to do a GUI. But most of the time the little AVR will be idle. So sad. So I came across the Nootropic Designs Video Experimenters Shield and I thought… really since the BATC project needs the real time MPEG-2 chip in the Hauppage PVR-150 board.. I might as well also do a callsign overlay.

Since the Arduino 2009 has a FTDI chip on it.. it has USB to Serial functionality on it. I can poll the UART at the Vertical Blanking interval and if it receives a PLL tune command, that can be sent to the PLL and displayed (for a short time?!?) on the Video overlay as well. For now, the video overlay shows a callsign message and the system timer in ms for debugging.

Here’s a shot of that too:

Arduino/Nootropic Designs Video Experimenter Shield Overlay Example Video

The video callsign overlay is done with this "sketch":

#include <TVout.h>
#include <fontALL.d>


#define W 136
#define H 104
TVout tv;
char s[32];
unsigned int n = 0;
int index = 0;
int messageLen = 34;
char message[] = "...W0FMS Digital Amateur Television";
char saveChar;
void setup() {
tv.begin(NTSC, W, H);
initOverlay();
tv.select_font(font6x8);
tv.fill(0);
}
// Initialize ATMega registers for video overlay capability.
// Must be called after tv.begin().
void initOverlay() {
TCCR1A = 0;
// Enable timer1. ICES0 is set to 0 for falling edge detection on input capture pin.
TCCR1B = _BV(CS10);

// Enable input capture interrupt
TIMSK1 |= _BV(ICIE1);

// Enable external interrupt INT0 on pin 2 with falling edge.
EIMSK = _BV(INT0);
EICRA = _BV(ISC11);
}


// Required to reset the scan line when the vertical sync occurs
ISR(INT0_vect) {
display.scanLine = 0;
}


void loop() {
saveChar = message[21];
message[21] = '\0';


for(int x=6;x>=0;x--) {
if (x<6) {
tv.delay_frame(3);
}
tv.print(0, 92, " ");
tv.print(x, 92, message);
}
message[21] = saveChar;
saveChar = message[0];
for (int x=0; x<messageLen; x++)
message[x] = message[x+1];


message[messageLen] = saveChar;


sprintf(s, "%dms ", millis());
tv.print(0, 0, s);
}

Assuming that you’ve downloaded the Enhanced TVOut Library into the \arduino\libraries directory.. the code above is how simple something like this can be with Arduino and the libraries. This compiles to less than 10K or 1/3 of the ATMega328P (on the Arduino 2009, or 1/6 of the ATMega644 on the Sanguino).

This is why I like Arduino. It took me less than an hour to build the shield and write the example code. I am not easily impressed and even that isn’t that impressive.. but the Closed Captioning decoder example is impressive. It works really well.. and is so simple really for what it is.

I know that hopefully some day the TV input portion of the BATC project will go from SD analog to SD/HD full digital and a little hack like this won’t be appropriate anymore. But I’ve had a blast with it and I really hope I can leverage it into a learning experience for the kids also.

Pick up a few of these Arduino gadgets (now you can buy them at Radio Shack if you are in a hurry– and want to pay 3x the clone price from e-bay/China) and give it a try– it’s quick fun experimentation and I can now see the ZEN.

73, Fred W0FMS

DigiLite Update and Soapbox

Again, this is going to be a shorter version of my blogger ‘blog at http://w0fms.blogspot.com where I intend on having more random thoughts and technical detail than I post here! 🙂

I’ve purchased parts (in the US– all from Mouser for lowest overall cost except for the Analog Devices AD8346ARUZ Modulator IC– which they don’t carry) for the British Amateur Radio Club’s DigiLite “poor man’s” DVB-S SCPC modulator unit.

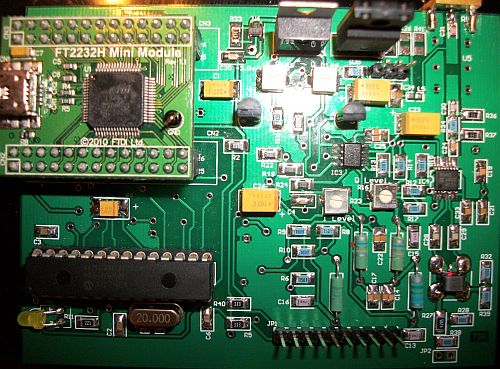

Almost complete BATC DigiLite DVB-S modulator board. All that is still needed is a MMIC amplifier be added after the QPSK modulator is properly adjusted with the external PLL Oscillator I am still awaiting from Israel.

The unit, as you may remember from my last post, uses an older analog Hauppage PVR-150, 250, 350, 500 and/or probably PVR-USB2 MPEG2 hardware encoder to set fixed constant bit rate (CBR) video and MP2 type CBR audio in a program stream format. This is translated to Transport Stream (TS) format for over the air transmission, Channel, EPG, and other needed DVB-S specific information is also multiplexed by the BATC software which is then sent to a DSPic33 that optionally adds the FEC (particularly at rate 1/2) and randomizes (to take out DC components because RF is inherently AC coupled!) the data– and then forms I/Q data with some pre-distortion with some tricks.. it’s filtered in a atypical way through an ANALOG LC Nyquist filter.. otherwise unfiltered PSK has infinite bandwidth! In commercial products a DSP typically would do this with a digital filter and a DAC. Finally the AD8346 does the I/Q phase shifting and that is the directly at frequency modulated DVB-S.

The LO is generated by a good e-bay find– a PLL L-band Oscillator that you can get from Ultram Tech in Israel custom programmed to one frequency. (I intend on reprogramming the unit with an Arduino [AVR ATMEGA part] board in the future– the chip’s dividers are programmed with SPI.) I have not received the board yet and didn’t want to disassemble and hack the 1152 MHz oscillator I previously bought about two years ago from Israel.

What the software and serializer firmware doesn’t do, thankfully, is care about the type of video that is in the MPEG-2 stream. I verified that tonight. The designers in the UK thought that NTSC would be fine.. and it seems to be.

Here is a video of the DigiLite “doing it’s thing” with rate 2222K video and 128K audio at a bandwidth of 3 MHz- 3MSym/S at 1/2 FEC QPSK. The video was set at NTSC D1 720×480 4:3 and I toyed with the settings until we were absolutely maxed out and were at close to zero null packets. Over the air, about 100K slower video might be a better choice. At 2112K, the null packets averaged 4.5%.. so somewhere in between these settings is about right for NTSC at 3MSym/s QPSK. This proves the digital part of the system out! We are close!

YouTube video of the BATC DigiLite running NTSC!

This is cool.. 1/2 the bandwidth and better quality than most Amateur TV. You’d think it was a no brainer for 70cm to replace 6-8 MHz AM TV? Well it is.. but in my not so humble opinion it’s not legal to run.

—SOAPBOX—
Part 97 defines that a digital phone or image (important definition) signal is legal if it uses the same or less bandwidth than the equivalent analog signal.

DVB-S and other digital standards definitely do. Unfortunately, from commercial license grants researched, I note that ATSC is C7W emission type and DVB-S/S2/C/T is G7W. Image is defined to EXCLUDE “7W” emissions. C7W and G7W are specifically defined as “multiplexed data” in another part of the rules– actually in reference to RTTY in the typical early 1980’s wording of those rules. So because DVB-S is “data” by part 97 definition, the 56K baud/100KHz BW rule applies at 70cm. In my not-so-humble-opinion it is not legal to run DVB-S nor ATSC (?!?) at 70cm because of these antiquated and wrong rules. But it is legal at 33cm and above as wideband data.

There are several who disagree with me on this. But for their definition to be valid technically by the Part 97 rules as they stand ATSC and or DVB-S would have to be G2F (DVB-S) or C2F (ATSC). By the Emissions Designator system that would also imply no audio channel. F2F is what SSTV is and I believe the “image” definition for FM/PM/PSK was specifically written with HF SSTV in mind! NO COMMERCIAL license grant (I found) has it defined that way! I can’t run 70cm DVB-S because I interpret the rules as above. Anyone who disagrees with me and wants to run it is fine with me. Wish you the best and I’m all for you! Likely the FCC nor the ARRL would do a thing to you as they shouldn’t!

What this really means is that the digital rules in US ham radio need fixing in a big way! We need to get rid of all the protectionist crap and realize that for many modes, the handwriting is on the wall for analog. The way the current rules are written in Part 97 makes most new digital modes second-class citizens on the bands. Bogus and Sad IMHO in almost-2012.

— /SOAPBOX —

New project– BATC DigiLite DVB-S Modulator

Note: a longer and more technically detailed version of this is at my other 'blog, which I've decided not to syndicate.

Why was I up to 3 AM last night, making me miss the Iowa QSO party today? I received a care package via “Royal Mail” on Friday from the British Amateur Television Club. It is something that was designed almost the same way (actually more clever in many respects) that I had been thinking of doing for close to 10 years.

The DigiLite is based on the “Poor Man’s DATV” by F4DAY. The project has been updated for modern computers by using a 2 channel FTDI USB serial port chip (which is the “why didn’t I think of it?” part of the design) and a closed-source (unfortunately) DSPic33 and Windows PC software to capture data from a “e-bay special” several year old Hauppage PVR-150, 250, 350 (and probably PVR-USB2) analog capture card from e-bay. (What is special about them for this project is an Conexant MPEG-2 encoder hardware chip and they are cheap!)

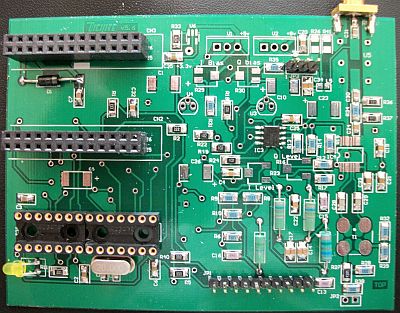

BATC Digilite card 3/4 way assembled at W0FMS -- topside

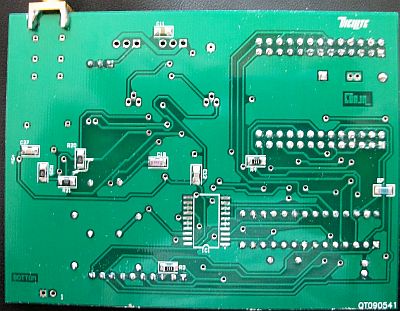

BATC DigiLite card 3/4 assembled at W0FMS -- bottom
