Friday evening's 630m crossband activity was 'interesting' in many respects. Propagation, which had been improving slowly, chose to follow Murphy's Law. The K-index, holding at a quiet '1', rose to level '3' by the time our event had concluded, as the geomagnetic activity ramped up. Additionally, lightning pocketed various areas of the continent, making listening noisy for many.

From here on Mayne Island (CN88iu), good two-way CW crossband contacts were made with the stations in the following order:

• N7IO (Seattle, Washington)
• VE7CA (North Vancouver, BC)
• KK7UV (Missoula, Montana)
• NW7E (Bend, Oregon)
• KU7Z (Ogden, Utah)
• VA5LF (Saskatoon, Sakatchewan)
• K7SF (Portland, Oregon)
• VE7BKX (North Vancouver, BC)
• K6TOP (Los Gatos, California)
• ABØCW (Westminster, Colorado)
• NO3M (Saegerton, Pennsylvania)
• KB5NJD (Duncanville, Texas)
• W7MTL (Independence, Oregon)

'Heard' reports were received from:

• KØSBV (Tucson, Arizona)
• WB6DCE (Seaside, California)
• KO6BB (Merced, California)
• K6CLS (Palo Alto, California)
• WY3B (Kaneohe, Hawaii)
• AA7U (La Grande, Oregon)

More than one of the DX contacts mentioned using just their HF dipole for listening to my signals on 630m and simply 'A-B' switching their transceiver's frequency while two of those sending 'heard' reports were using 100' longwires. Mike Tuggle (WY3B) in Hawaii was using his amazing 1-MOSFET regen and small inverted 'L' !

I was also more than excited to exchange signal reports with Pennsylvania and Texas. Considering conditions, this distance was far beyond my expectation but both of these stations have very efficient, dedicated 630m antenna systems.

John, VE7BDQ, worked the following stations on crossband:

• VE7CA (North Vancouver, BC)
• W7DRA (Seattle, Washington)
• N7IO (Seattle, Washington)
• NW7E (Bend, Oregon)
• KK7UV (Missoula, Montana)
• KU7Z (Ogden, Utah)
• VA7JWS (Delta, BC)
• VA5LF (Saskatoon, Sakatchewan)
• WB6W (Oysterville, Washington)

'Heard'  reports were received from:

• K5HK (Reno, Nevada)
• KØSBV (Tucson, Arizona)
• WY3B (Kaneohe, Hawaii)

It was gratifying to see all of these fellows making the effort to listen for our signals or to attempt the QSO.

This exercise taught me a few things about our new band.

• It is not necessary to have huge antennas and acreage to make this band work. Good solid contacts can be easily made with small backyard antenna systems.
• With good systems on both ends, transcontinental QSO's can be made.
• There really should be more interest by Canadian amateurs in their newest band as so much work has been put into securing this portion of the spectrum as a ham band. It was very disappointing not to work any stations in VE6, VE4 or VE3 land.
• There is already much interest in this band by U.S. amateurs, many of them anxiously awaiting the day that they can also call it a ham band.

I would like very much to continue this type of crossband activity to try and generate more interest in our new band. I'm presently considering a weekly, one-night crossband operation, similar to Friday's event, perhaps running for one hour per week. The main difficulty will be in getting the word out to those that might wish to participate.

During the past few projects I'd noticed a serious diminishing of my 1/4 watt resistor stock and decided to see what was available from e-Bay.

Many of the dealers in China were offering various packages at reasonable prices and it is hard to resist 'free shipping'.

After narrowing things down I decided on one particular dealer, electronics-salon, who had only five minor complaints in over 17,000 transactions during the past 12 month period. As well, he seemed to be selling only high-quality components, unlike many of the sellers from China.

The offering was for:

0 to 10M ohm 1/4 Watts Axial Lead Carbon Film Resistors Assorted Kit.
E-12 Series 86 Values, Total 860 Pieces (Each 10).
Resistance Tolerance : +-5%.
Rated Power : 1/4 Watt.
100% New, Never Used.
RoHS Compliant.

With free-shipping, the cost was just over one-cent per resistor and would nicely re-stock my 1/4W trays as well as provide me with many more values to choose from than at present...hard to resist!

So...what happened?

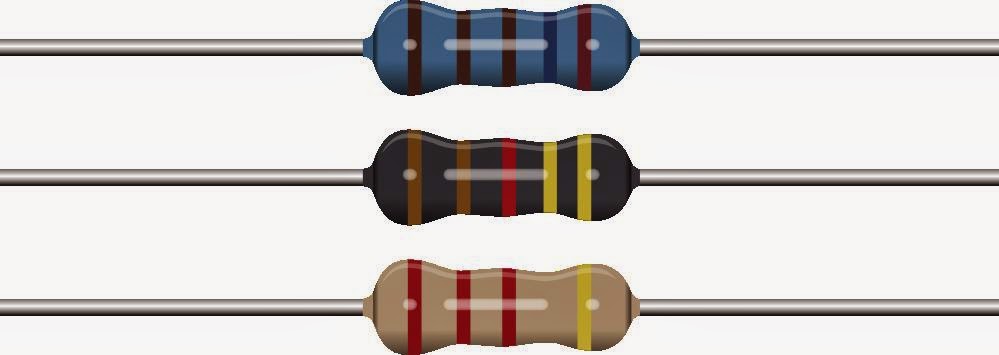

Courtesy: http://www.ebay.ca/

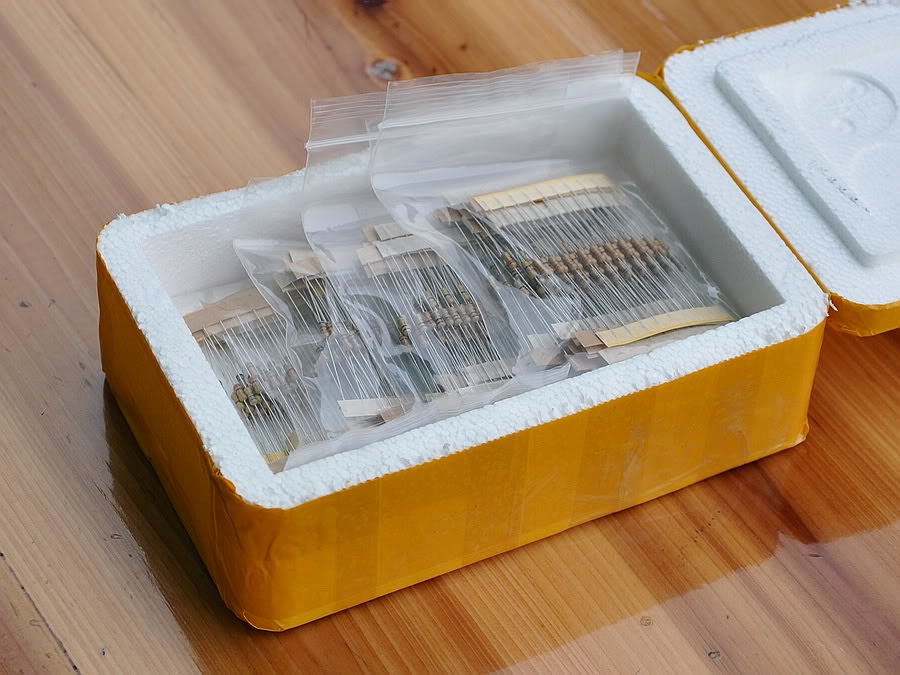

The resistors arrived, packaged as shown, at the normal 'free-shipping' (slow) rate, which I don't mind. I selected three values to test and three samples of each value...120K, 68K and 8.2 ohms.
All resistors were within their 5% tolerance rating except for one of the 8.2's which measured 7.6 ohms... 2% out of tolerance.


I next smoke-tested a 680 ohm resistor for five minutes at slightly more than 1/4 watt dissipation. Measuring the resistor immediately after revealed that there had been no change in resistance.

Overall I am pleased with this purchase and would buy from this particular e-Bay seller in the future.

The three VE stations active on 630m CW are looking forward to working you tomorrow (Halloween) evening via the crossband mode during the 630m Activity Night.







In the east, watch for VO1NA. On the west side, watch for VE7BDQ and VE7SL. Here are the transmitting frequencies, times and HF calling frequencies:

• VO1NA - Joe, in Torbay, Newfoundland. Joe will transmit on 477.7 kHz starting at 2130Z Oct 31 and will continue until 0130Z Nov 1. He will listen for callers on 3562 kHz and 7062 kHz.

•  VE7BDQ - John, in Delta, B.C. John will transmit on 474.0 kHz starting at 0100Z and will continue until 1000Z on Nov 1. He will listen for callers on 3536 kHz.

• VE7SL - Steve, on Mayne Island, B.C. I will transmit on 473.0 kHz starting at 0200Z and will continue until 0600Z on Nov 1. I will listen for callers on 3566 kHz and 7066 kHz.

630m propagation conditions have been very good this past week and barring any sudden auroral events, should continue. Unless you are within a few hundred miles of these stations, don't expect signals to be 'loud'. Even when running several hundred watts, antenna's that fit into backyards are not very efficient at radiating all of it! However, from what I have observed, propagation on 630m is very forgiving and has much in common with 160m. Distant signals can sometimes be surprisingly easy to copy when the sun is not up to its tricks!

I have no idea how many stations will be participating on HF but please do not give up should your first few calls not be answered. If conditions appear to be really good, operating hours will probably be extended. Unfortunately Saturday night will probably be out since it is the Sweepstakes CW weekend and will pretty much plug the HF bands, wiping out the calling frequencies.

Don't forget to watch for the Part 5 Experimental stations (WG2's and WD2's) who will be beaconing and working each other on 630m directly. I'm sure they would appreciate your 'heard' reports as well.

Good luck and see you tomorrow.

The weekend CLE event described in an earlier blogpost provided the first real opportunity to put my new LF loop to the test. Actually, it has already passed the most important test...surviving a large 60+ mph windstorm, while I was away on a short vacation. Unfortunately, a 60' Douglas Fir, just a few feet from the loop, blew completely down...thankfully, over the bank, in the other direction. Cleaning it up will take a few weeks but should provide some good firewood as well as exercise.


Before leaving, I tied the end arms of the loop down just in case it might get windy, but it seems that the light PVC frame does not produce the same windage as my large wooden 10' loop frame.

Beacons logged over the three-night event:

Courtesy: http://www.noaa.gov/

Courtesy: http://www.noaa.gov/

Since then, there have been three more major flares from this same region, one at X1.0 (on Saturday) and the most recent (this morning) at X2.0. Oddly enough, none of these flares have produced CME's as little plasma release has been detected. Any associated auroral events will be very weak or unlikely in spite of region 2192 being geoeffectively positioned at the time of the flares.

However, the near light-speed arrival of Friday's emitted UV radiation caused a fast rise in the muf as spotty signals from various regions of South America were soon being heard on 6m in North America.

The most prominent signal was that of CX7CO (Carlos), in Montevideo, Uruguay. Thanks to the ever-alert KE7V, who posted news of the sudden arrival of Carlos, he was widely worked around North America including the west coast, a region that is usually left-out of the action. Known to have worked Carlos from here were myself, VE7XF, VE7DAY, KE7V, K7CW and possibly others outside of my hearing range. Shortly after working the west coast, Carlos was heard working JA's as his signal became weaker.


The distance from Mayne Island to Montevideo is 11,425km (7100 miles), which would tend to indicate that the contacts were a result of F2 propagation. Some have suggested a Sporadic-E-to-TEP link but I have my doubts...several 'TEP markers' were not present and there were no signs of any Es activity from this area. Although his signal peaked at 569, it is not uncommon for F2 signals to be weak, unlike the bone-crushing levels they can sometimes reach.

Courtesy: https://maps.google.ca/

As spot number 2192 slowly rotates out of view, it looks like the overall solar flux levels will quickly decline, diminishing the chances of any new activity on 6m this fall. One thing however is for certain...you just never know what might come next on the Magic Band!

When it comes to putting a transmitter together for the BK, there are a lot of choices! My advice for a first-build '29 rig would be either a simple TNT or a Hartley-style oscillator. Both are easy to get operating and, when correctly optimized, are capable of putting out a nice-sounding signal.

For a first-time build, with the main objective being to have something ready in time for the December BK, I would not be concerned about overall appearance or period-appropriate parts. For now, the only thing that must be period-appropriate is the tube...improvements can come later.

As well, I would not be overly-concerned about running the maximum power of 10W input. If you are able to get a type '10' or the equivalent VT-25, or a pair of 45's, then the legal-limit is easily within reach. Utilizing something smaller, at just a few watts output, should not be considered a deterrent, as BK-operators all seem to have very good ears. Just 2 or 3 watts will guarantee plenty of contacts no matter where you are located!



Shown above is a fine little TNT built by Kevin, WB2QMY, in New York. It uses a very affordable UX-201A triode, originally manufactured in 1925 for radio receivers. Although Kevin's TNT puts out barely 2 watts on 80m CW, we had no trouble working each other in a recent BK QSO Party. If you build it, they will come!

If you prefer to tackle a TNT, here is the information you will need. This circuit appeared for several years in the ARRL Handbook's transmitter-section. I suspect that it was probably built by thousands of young hams in the late 20's and early 30's and affordably introduced most of them to the magic of radio. For more building details, including how to keep high-voltage off of the main tank coil, see the information on my website describing the TNT project.


Should you be interested in tackling a Hartley, here is an interesting circuit described by Nick, WA5BDU.

Courtesy: WA5BDU

Nick's circuit uses the readily-available '27 type, popular because of its indirectly heated (modern style) cathode. Nick fully describes his project here.
Such a transmitter would readily lend itself to a parallel arrangement of two or more triodes, such as the 27 or the 45 and would develop good power levels inexpensively.

ABØCW has designed a Hartley oscillator using a pair of 27's in parallel and uses them to drive a small amplifier. As described on his website, the oscillator would make a fine stand-alone transmitter with a simple link-coupling antenna circuit.

Courtesy: ABØCW

You can find a list of '29-style related building links, as well as a gallery of transmitters constructed by others, at the bottom of my TNT web page here.

And....circuit ideas, help with parts and lots of BK-chat can always be found at the Yahoo AWAGroup where the focus is mainly on building and operating.




VR-266 Vancouver Int'l (50W) - heard as far east as NC

How time flies...once again it's time for the monthly Co-ordinted Listening Event (CLE) for NDB hunters....the 187th event. These always interesting and popular affairs take place over three nights, with this one starting on Friday, October 24th at local noon and running until Monday, October 27th, local noon.

These listening events serve several purposes. They:

• determine, worldwide, which beacons are actually in service and on-the-air so the online database can be kept up-to-date

• determine, worldwide, which beacons are out-of-service or have gone silent since the last CLE covering this range

• will indicate the state of propagation conditions at the various participant locations

• will give you an indication of how well your LF/MF receiving system is working

• give participants a fun yet challenging activity to keep their listening skills honed

This time, it's a two-part activity, should you decide to chase normal DX beacons as well as those from your own country or state/province. Here are the details.

Days: Friday 24th October - Monday 27th October
Times: Midday on Friday to Midday on Monday, your LOCAL time
QRG: Normal LF/MF frequencies (190 - 1740 kHz)
NDBs: Normal DX and 'HOME' ones (not DGPS, Navtex or Amateur)

DX:
Please try to log NDBs that are over 2,000 km / 1,250 miles from you.
If you have a wall map in your shack, you could draw a circle on it.
It will be accurate if it is a great circle map centred on your location.
(There are other easy and very good ways to find which NDBs qualify
for you - I will describe them in the Final Details email)

HOME:
Please also try to log NDBs in YOUR OWN radio country. For listeners
in AUS, CAN and USA, that means your State or Province.
It will be trivial for a few of us in tiny radio countries, very challenging
for a listener in, e.g., RUS (Eu). Most of us should have a fair list to
try for.
If we also mention any of our home regulars NOT heard, it will help
others to know about NDBs that are not currently active.

If you report on both parts, DX and HOME, I suggest you put them in
separate parts of your log. As usual, any UNIDs that you come across
will also be of interest - in a third part of your log.


Final details can be found at the NDB List website, and worldwide results, for every participant, will be posted here a few days after the event.

The very active Yahoo ndblist Group is a great place to learn more about the 'Art of NDB DXing' or to meet other listeners in your region. There is a lot of good information available there and new members are always very welcome.

If you are contemplating getting started on 630m, listening for NDBs  is an excellent way to test out your receive capabilities as there are several NDBs located near this part of the spectrum.


You need not be an ndblist member to participate in the CLEs and all reports, no matter how small, are of much value to the organizers.

Reports may be sent to the ndblist or e-mailed to either myself or CLE co- ordinator, Brian Keyte (G3SIA). It was very exciting to see two new reporters to last month's event after reading about the CLE right here. Hopefully there will be more first-time reporters for upcoming CLE187.

Please...don't be shy and do give the CLE a try....then let us know what NDB's can be heard from your location! Your report can then be added to the worldwide database.
