Two Additions: MTR and Begali Adventure Key
May 12th, 2013 |
Author: It's always nice to get new toys. Toys are usually never in the category of "needed", but almost always in the category of "wanted". Over the past week I've had two new additions to the shack that are definitely "wanted toys"
I received the Begali Adventure paddle. What a work of art. This paddle is another example of the precision workmanship found in Begali keys. I installed the key on my KX3 (you must plug the key into the key port on the side of the radio) and it is pure joy to operate. So a KX3, with a Begali key, this isn't your your Dad's QRP. Most luxurious.
The key also had available hardware that will allow this key to be used with the KX1 and FT-817.
I received the Begali Adventure paddle. What a work of art. This paddle is another example of the precision workmanship found in Begali keys. I installed the key on my KX3 (you must plug the key into the key port on the side of the radio) and it is pure joy to operate. So a KX3, with a Begali key, this isn't your your Dad's QRP. Most luxurious.
The key also had available hardware that will allow this key to be used with the KX1 and FT-817.

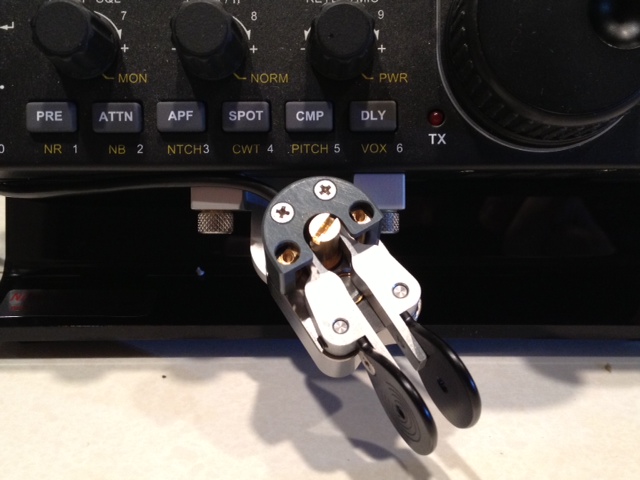

Begali Adventure Paddle
This week I also received from TJ, W0EA, my Mountain Top'er Rig, MTR, a KD1JV designed 2 band QRP radio. This is a SMD kit that I asked TJ to build for me since, at the time, I didn't really have any experience soldering SMD components. My MTR is set up for 40m/20m operation, CW only. It is very light and is well designed. I made my first QSO with W7WHO shortly after taking it out of the box. I look forward to using it on SOTA activations.
MTR 2 Band QRP Radio
Oh the temptations of QRP gear. Right now I'm a happy camper.
SMD Project
I finally took the plunge. I am just getting back into building my own radio gear after a few years off the wagon operating primarily QRO commercial gear. As I have built gear in the past, I found it very satisfying to put something together that works and then use it to make QSO's. However, while I was away from the kit building scene there was a step change in the technology of radio components and the methodology to build them, that is SMD, (surface mount devices). These are very small capacitors, resistors, diodes, etc... that greatly reduce the size of whatever you are building. Let me repeat, very small. They are tweezers and magnifying glass kind of small. I would say simply, that I was very intimidated by this change. However I wanted to learn.
When Steve, KD1JV, kitted another run of his MTR (Mountain Top Rig), I wanted one. It is however an SMD kit, but I thought why not take the plunge. However when the kit arrived with its cool looking case and I looked at the components I thought maybe I should have someone else build this kit. I didn't want to ruin such a cool radio with my learning mistakes. So I outsourced that one. However, I still wanted to learn SMD construction. Somehow I felt like a QRP wimp because I couldn't build SMD projects. So, what to do?
As I searched the QRP kit world, I found the perfect project. The SMK-2, a kit from Doug Hendricks, www.qrpkits.com, is a 300mw, 40m crystal controlled transceiver. It is specifically designed for SMD training. So I ordered the kit.
When Steve, KD1JV, kitted another run of his MTR (Mountain Top Rig), I wanted one. It is however an SMD kit, but I thought why not take the plunge. However when the kit arrived with its cool looking case and I looked at the components I thought maybe I should have someone else build this kit. I didn't want to ruin such a cool radio with my learning mistakes. So I outsourced that one. However, I still wanted to learn SMD construction. Somehow I felt like a QRP wimp because I couldn't build SMD projects. So, what to do?
As I searched the QRP kit world, I found the perfect project. The SMK-2, a kit from Doug Hendricks, www.qrpkits.com, is a 300mw, 40m crystal controlled transceiver. It is specifically designed for SMD training. So I ordered the kit.
SMK-2 SMD Kit
There are a couple of methods to build SMD projects that I wanted to try. The first is the solder paste, hot plate method. To be brief, you put small amounts of solder paste on the component solder pads and then place the components on the pads. You should use a syringe to apply the paste. You can do this with as many components as you feel you can keep in place. It is a delicate operation but when done properly can save a lot of time. You should only have one "cooking' if you will, so put as many components on the board this way, if not all, as you can. I chose to do a few of the capacitors. After applying the paste and placing the components you put the board on a cooking griddle set at 200 degrees F. When the solder paste starts to smoke you use a hot air gun, (available at hobby stores or with commercial SMD soldering stations), and direct the hot air at the components. Before your very eyes the solder adheres and makes a very nice looking solder joint. When completed, let the plate cool before removing the board.
After I let the board cool, I wished I had set more components in this manner as the joints looking almost professionally done. However, I wanted to learn to hand solder these small SMD as well, so I would have plenty of small parts to practice on.
Hand soldering requires some magnification device. I use a relatively cheap, lighted magnifying lamp like the one below. It is a 2X glass with a small 5X circle that you will need to identify parts.
You will also need some tweezers to hold the components during the soldering operations. The hand soldering process is as you would suspect, tin one pad, set the component and then tin the second pad. So far, with the right tools, the hand soldering has been much easier than I suspected.
I haven't finished the project yet, but have put down the capacitors, resistors and diodes, so the bulk of the work is done. One thing to be aware of, try to do the work where you can find dropped parts. I dropped a resistor onto the carpet in my shack and had to use a nylon trap on a vacuum cleaner to find it.
I will let you know when I pass the smoke test.
SOTA IS!!!
Some of you 'not so old timers" may have never heard of Hugh Cassidy, WA6AUD. Cass, as he was referred to, wrote humorous stories about DXing for the West Coast DX Bulletin that featured the QRP'er who went "up the hill" to discuss and get counsel on the Mysteries of the Ages and the Eternal Enigmas of DXing. If you haven't read any of Cass's work, you really should read a couple before you read my story below. His stories can be found on the this website, www.oocities.org/k2cddx/dxstories.html
So in the vein of Cass, I submit the following
So in the vein of Cass, I submit the following
SOTA IS!!
The QRP’er came sprinting up the hill last week with a gleam in his eye. We were all surprised as it isn’t often the QRP’er was happy, we were anxious to hear the subject of his happiness. “I’ve found a new way to DX” he proclaimed. We were all confused as we believed that DX is DX, what could be different? “And what sort of new DX have you found?” we asked. “It has been right here all the time”, he said, “Right here on top of this hill”. We were confused as this must be one of the Eternal Enigmas that few could understand, what could possibly be under our feet on this hill?
“Have you ever heard of SOTA” he asked. We were bewildered at such a simple question. “Of course we have, I’m sure we all drink at least a couple every day.” He laughed at us, which really made us uncomfortable; it was different to us that the QRP’er seemed to have the upper hand. “Not soda, but Summits on the Air, S,O,T,A.” We were speechless as he continued, “You see this very hill top is DX, there are guys out there right now who want to make a contact with this hill top and it counts for award points” We stood in silence as he quickly deployed and simple vertical antenna, hooked it up to his QRP rig, called CQ and immediately had a pile-up”.
We were humbled as the QRP’er had truly left us speechless. Right here on top of this hill was on someone's needed list and all this time we thought DX was beyond our borders. We pondered the Mystery of Ages as there is always something new to work and that such fun has been within our reach all this time. We were forced into a new DX state of mind and we all uttered, SOTA IS!!.
Project: KI6J SOTA Tuner
As I have written I am building up my QRP and SOTA arsenal, focusing on portability, efficiency and weight. While weight and portability are obviously desirous for your primary station configuration, I like to have some redundancy in case Plan A doesn't work. For example, I prefer resonant antenna's, but resonance in a given configuration in the backyard may not always equal resonance in the configuration you end up with in the field. So, I like antenna options.
With that in mind and a need to build something I opted for the KI6J SOTA Tuner as part of my back up antenna system. I haven't built anything in a few years and wanted to get back in the groove on melting a little solder, so I ordered the kit from Stu. Relatively speaking it is an easy kit to build. You do get the pleasure of winding a small transformer and toroid. However if that scares you as a new builder this is a great kit to learn on.
This kit is designed for use by portable QRP operations needing a lightweight, easy to deploy antenna system. Using this tuner, a portable station needs no ground radials and little or no feed line to achieve excellent results. The tuner matches the impedance of end fed, half wavelength (EFHW) wires on 40m -15m and contains a built in SWR indicator. The tuner is designed for durability and reliability of operation and handles QRP power levels, 5W CW and 10W PEP SSB.
With that in mind and a need to build something I opted for the KI6J SOTA Tuner as part of my back up antenna system. I haven't built anything in a few years and wanted to get back in the groove on melting a little solder, so I ordered the kit from Stu. Relatively speaking it is an easy kit to build. You do get the pleasure of winding a small transformer and toroid. However if that scares you as a new builder this is a great kit to learn on.
This kit is designed for use by portable QRP operations needing a lightweight, easy to deploy antenna system. Using this tuner, a portable station needs no ground radials and little or no feed line to achieve excellent results. The tuner matches the impedance of end fed, half wavelength (EFHW) wires on 40m -15m and contains a built in SWR indicator. The tuner is designed for durability and reliability of operation and handles QRP power levels, 5W CW and 10W PEP SSB.
KI6J SOTA Tuner
The build went very smoothly and when I finished, it didn't work. Wait a minute this is an easy kit, no solder bridges, correct number of turns on the toroid, continuity in the circuit, what could be the problem? So here is a lesson, always read the addendum or errata, or whatever the kit designer calls it, that amends the original building instructions. My problem, I soldered the LED in backwards, which was clearly explained in the addendum that I failed to read. So, I reversed the LED and the unit worked like a charm.
SOTA Tuner

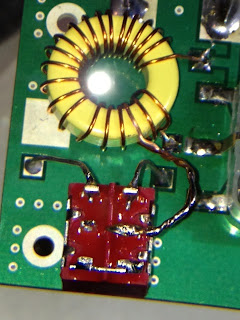

Not a bad Toroid
So, to the field test. I found a piece of wire, roughly 1/2 wave on 20m and put it up on my Jacktite mast and hooked it up to the SOTA tuner. I found resonance on 40m -15m just as advertised. I love when a plan comes together, especially when the plan includes something that I built myself.
Needless to say , I recommend this kit and Stu supports it very well, by asking questions like, "did you put the LED in backwards?" Plan B is now ready to go.
The kit is available at: http://betterqrp.com/
The kit is available at: http://betterqrp.com/
