DMR Hotspot from SharkRF

Amateur adoption of Digital Mobile Radio (DMR) continues to increase, with a number of new innovations playing out. It was way back in 2012 when I wrote this article about DMR for CQ VHF Magazine: TRBO Hits the Amateur Bands.

A few years ago, I picked up some used MOTOTRBO gear to use on our local DMR repeater system (MOTOTRBO is Motorola’s version of DMR). Here in Colorado, the Rocky Mountain Ham Radio group has been instrumental in establishing a great network of DMR repeaters, a real asset for Colorado radio amateurs. See Rocky Mountain Ham Radio TRBO/DMR Network.  Worldwide, the DMR-MARC organization has created a robust network of MOTOTRBO repeaters in over 60 countries.

A more recent development is the establishment of the BrandMeister Network, which promotes more of a homebrew approach to DMR. This evening, the BrandMeister dashboard shows 634 industrial repeaters (commercial equipment), 263 homebrew repeaters and over 1300 hotspots of various types.  A variety of DMR hotspots are available, including the DV4mini. I’m not going try to list all of the hotspots available as I’m sure I’ll miss something.  The SharkRF openSPOT caught my attention because of this excellent review by John ‘Miklor’ K3NXU. Because of its popularity, the openSPOT is on backorder (price: 182.5 Euro).

This HamRadioConcepts video walks through the setup and basic operation.

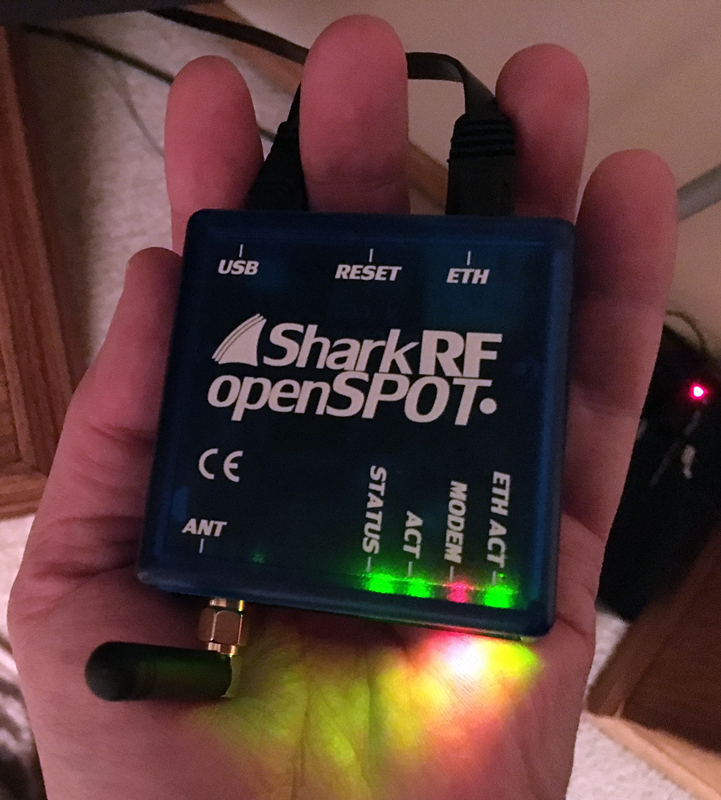

I thought the openSPOT would be a good widget to have around the shack. It is a standalone hotspot, so I don’t have to dedicate a computer to it. Also, it is very turnkey…no assembly required…but some configuration to work out. Its user interface is a web page that you access via your local network…nicely done. I got it working in less than one hour and have been fiddling around with it ever since.

Hotspots are a funny item. They have very limited RF range, so their main purpose is to provide local RF access into the network (just like your Wi-Fi hotspot). One role they play is to provide fill-in coverage when no repeater is available. Another role they fill is being a personal device that can be connected to your favorite reflector or talk group.

I should point out that the openSPOT also operates as a D-STAR and Yaesu Fusion (YSF) hotspot. You just change the configuration of the modem and it starts speaking the selected modulation. More surprising is that I was able to use a YSF handheld radio to talk to the openSPOT which routed me to a DMR talkgroup. Yes, a Yaesu YSF radio talking on DMR.

The first thing I noticed when listening to some of the more active talk groups is that it seems like every person getting on the system said “I just got this Tytera MD-380 radio and you are my first DMR contact.” OK, sometimes it was a Connect Systems or Motorola radio but the MD-380 at around $100 is having a big impact. I picked up an MD-380 and while its not quite as nice as my Motorola, I really do like the radio. (Note that there are other low cost DMR radios that have serious technical issues.) There will be other radios on the market…the technology will keep improving and improved models will hit the market. Right now, everyone is wondering who will create a good dualband 2m / 70cm transceiver for DMR.

I see some very strong technology and market trends in play here that are going to impact the ham radio world. First off, DMR is a true industry standard (ETSI),  well designed and documented. Second, we are seeing multiple radio vendors offering competitive, low cost transceivers. Third, there is high quality commercial repeater gear available from land mobile providers such as Motorola and Hytera. But there’s one more thing that really tops this off: the number of ham-built products emerging that are focused on DMR. This is classic ham radio adaptation and innovation that leverages commercial gear for ham radio use.

Stay tuned…this is going to be interesting!

73, Bob K0NR

The post DMR Hotspot from SharkRF appeared first on The KØNR Radio Site.

Bob Witte, KØNR, is a regular contributor to AmateurRadio.com and writes from Colorado, USA. Contact him at [email protected].
